SPECIFICATIONS

Please note this is the tape only, you will need a controller and psu. We use the esp based WLED which works great with this

Average Life (hrs): More than 50000Hours



Certification: CCC,ce,FCC,ROHS

Color Temp(K): 2200-6500K

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 144LEDS/M

Luminous Flux: 249-2000

Model Number: WS2812 WS2815

Power Consumption (W/m): 11.52W/m

Specifications (light beads / m): 144

Strip type: SMD

Voltage: 5/12V

Waterproof: Yes

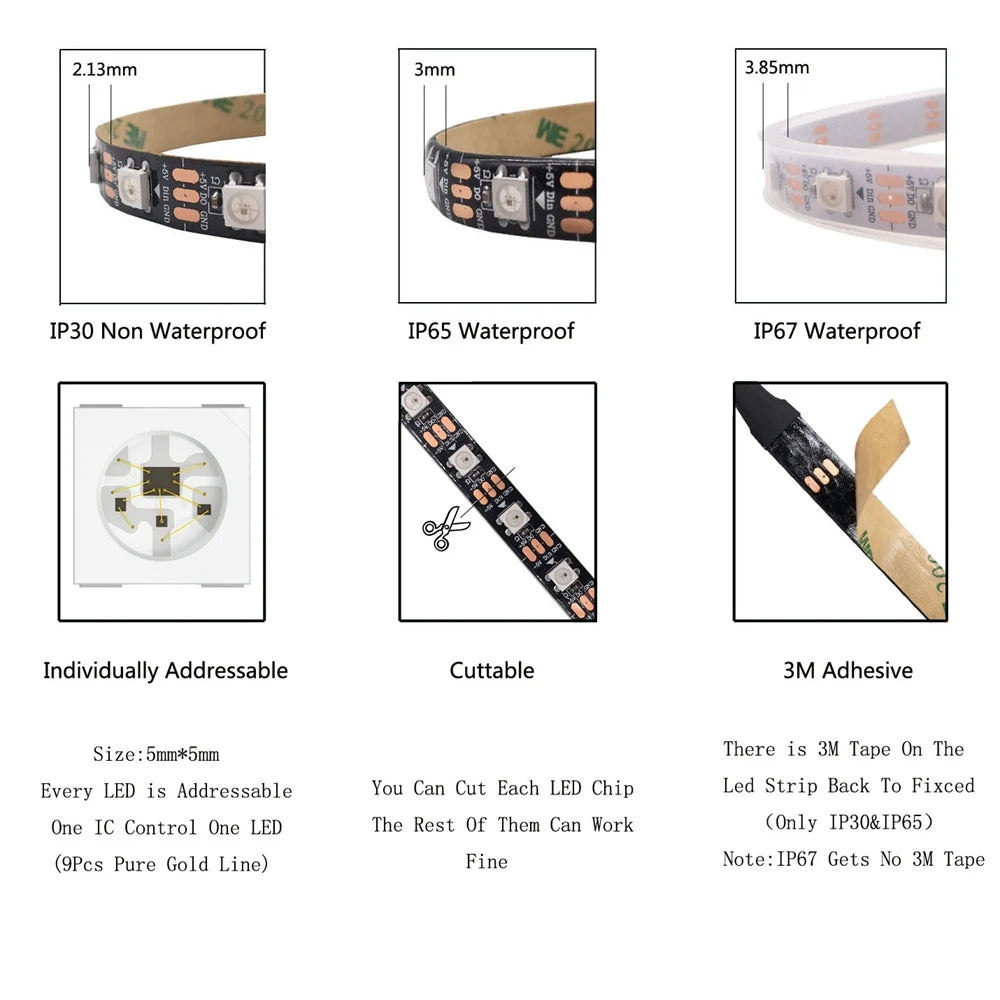

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

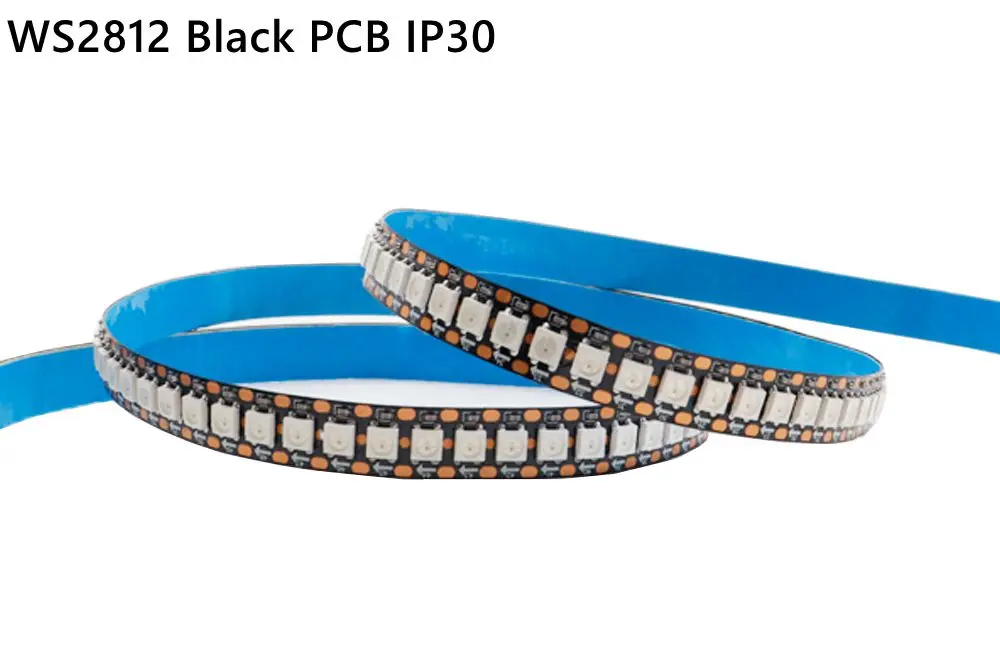

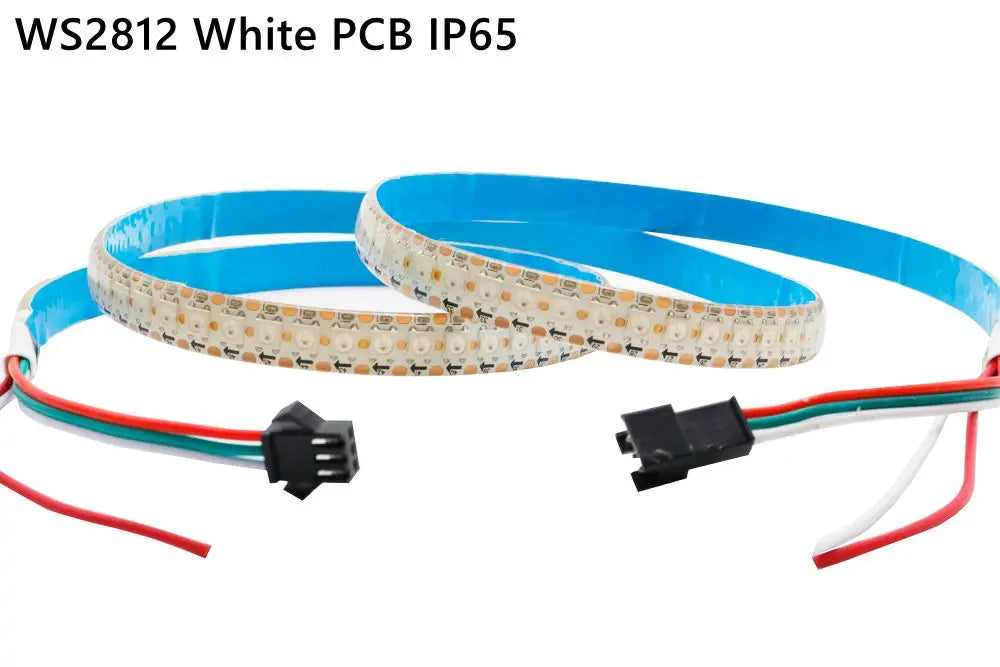

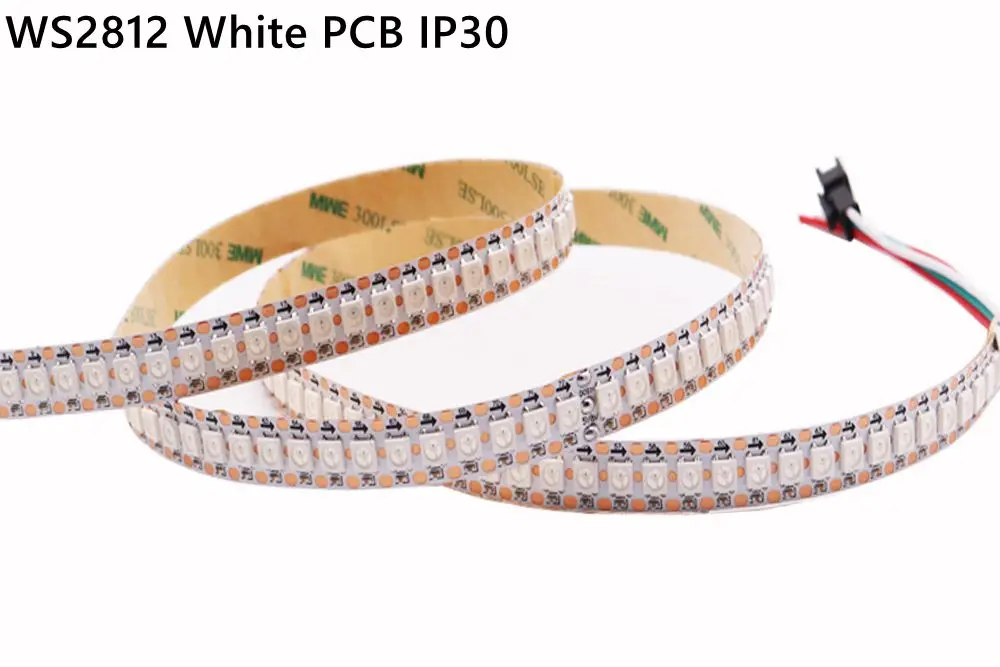

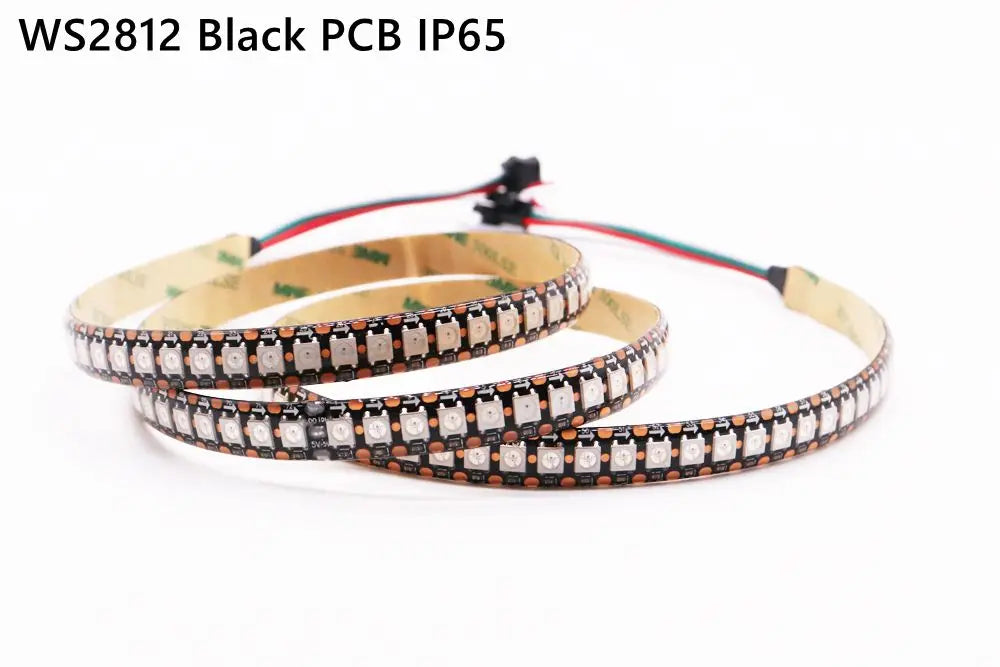

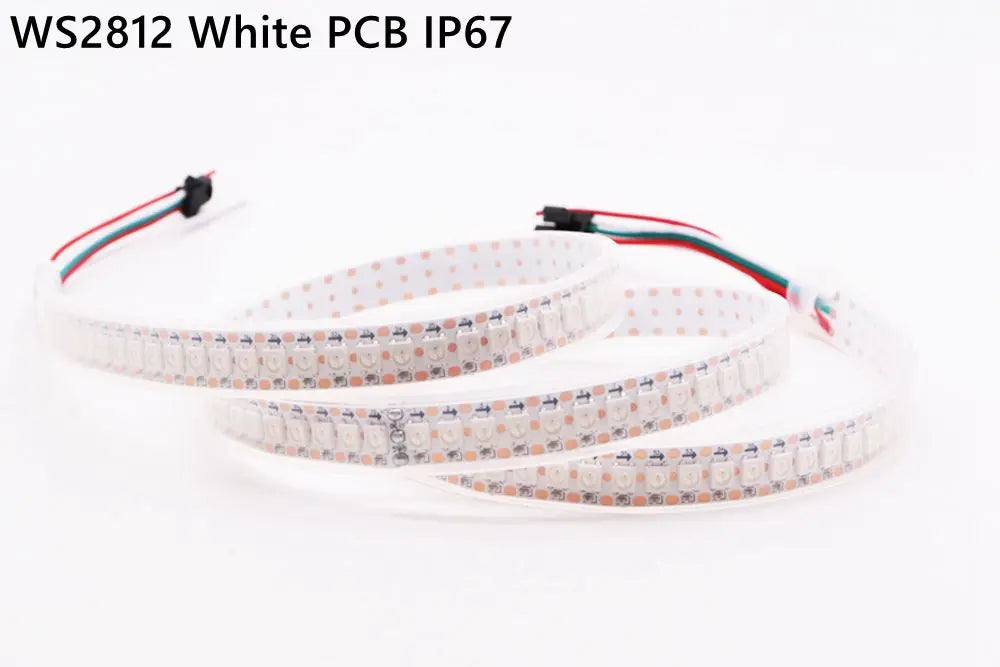

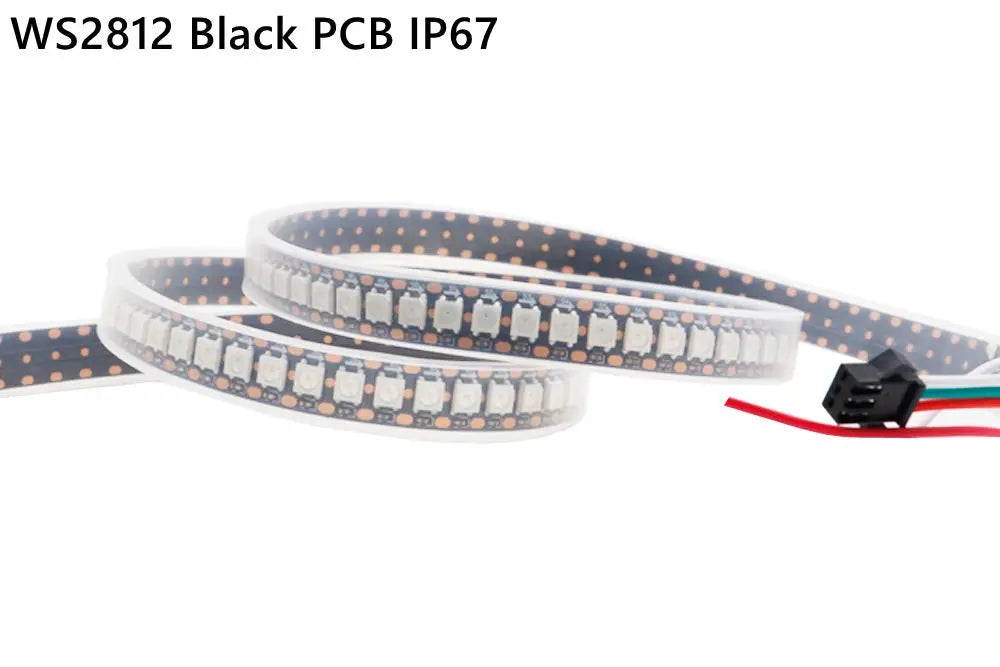

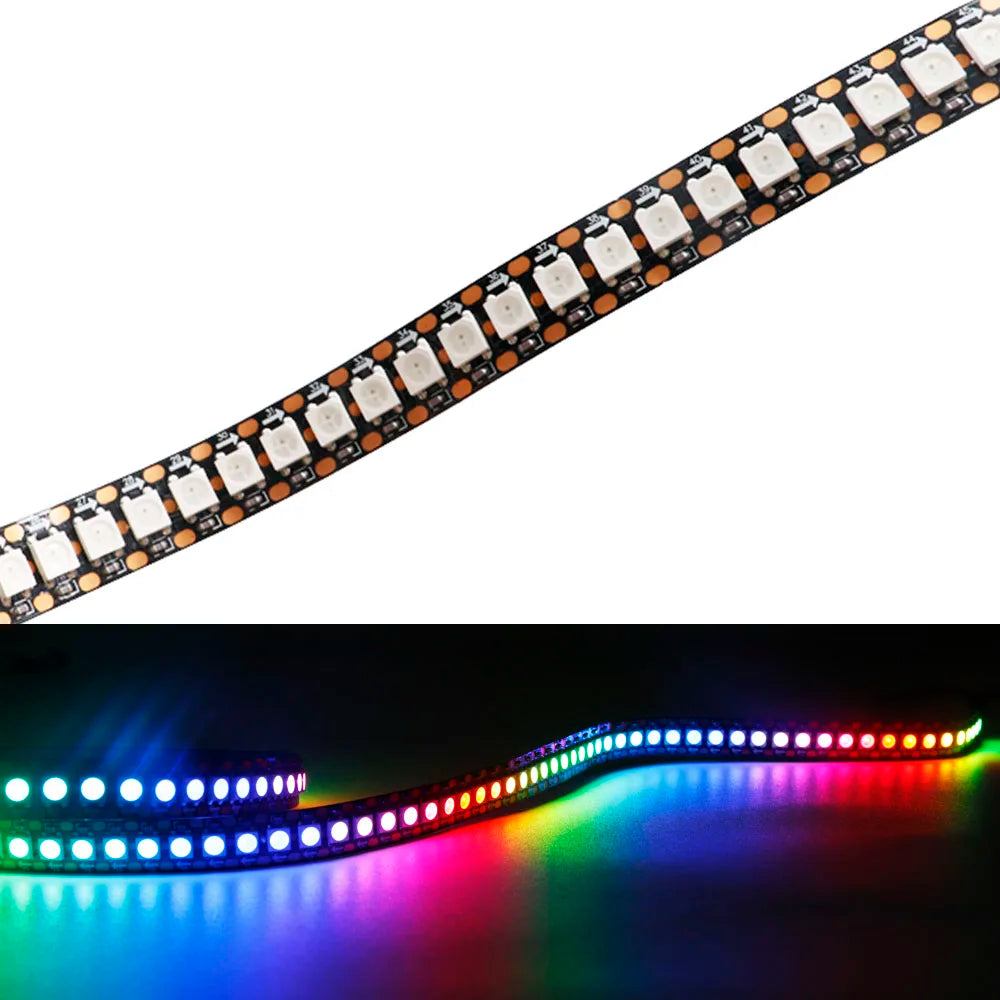

WS2812 LED Strip:

Input Voltage: DC5V

Power:

144Leds/m----43.2Watt/meter

Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Pixels: 144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

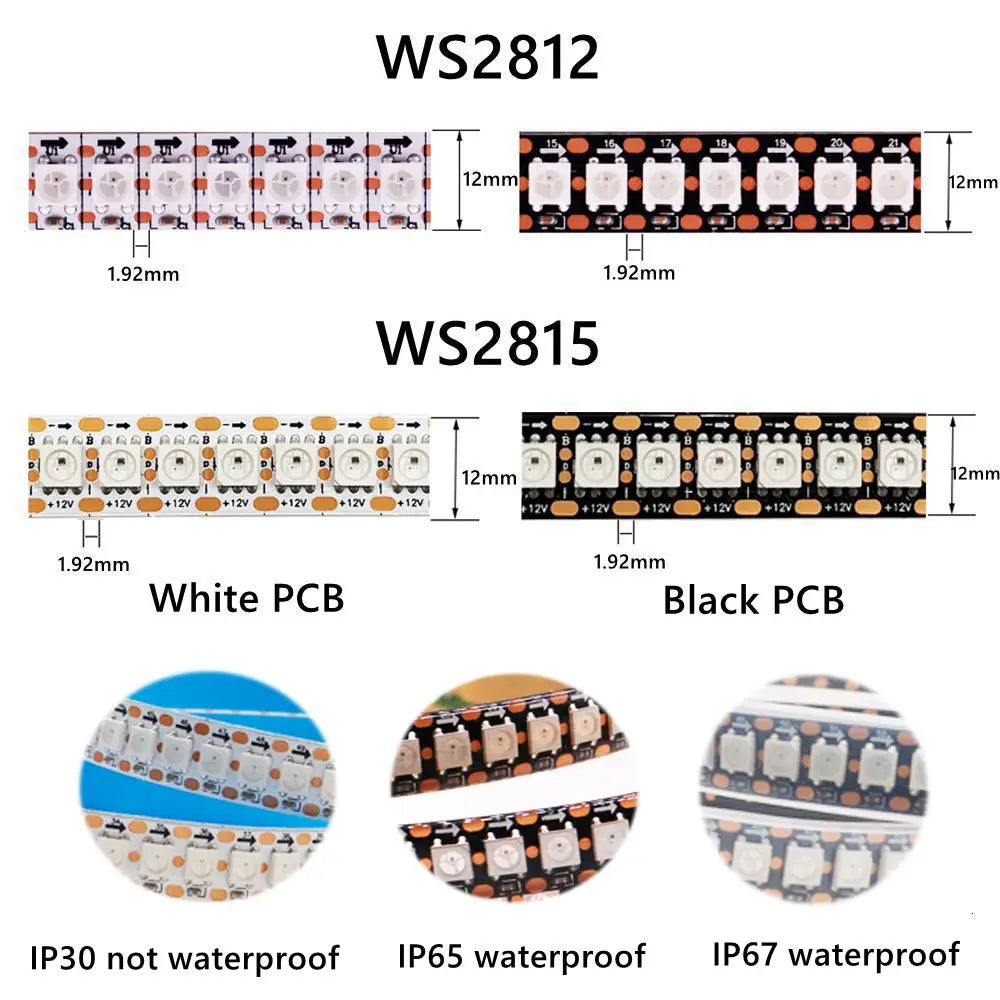

FPC Width:

144Leds/m----12mm

FPC color: Black/White

Protection Rate: IP30/ IP65 /IP67

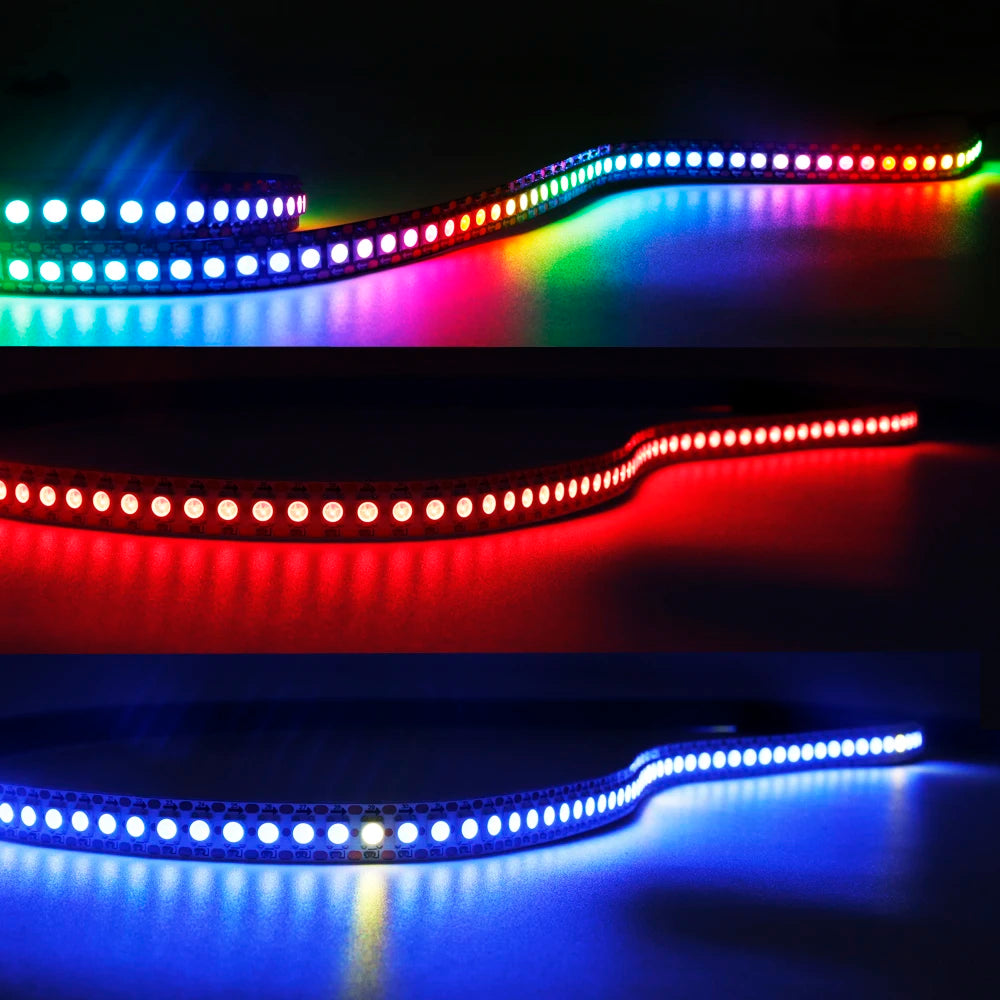

Colors: Full Color RGB, Dream Color Changing

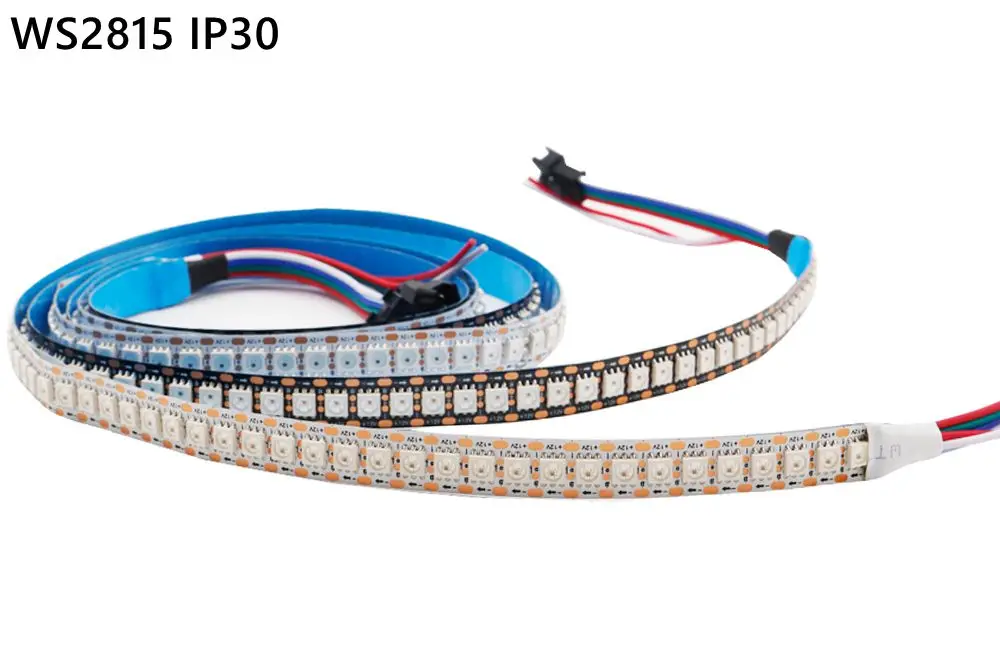

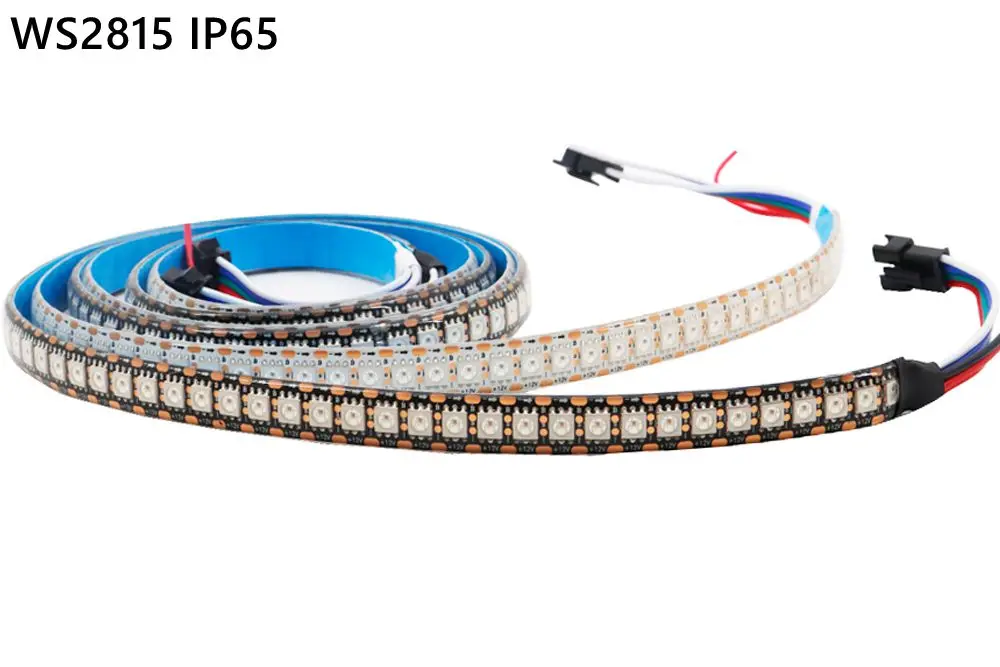

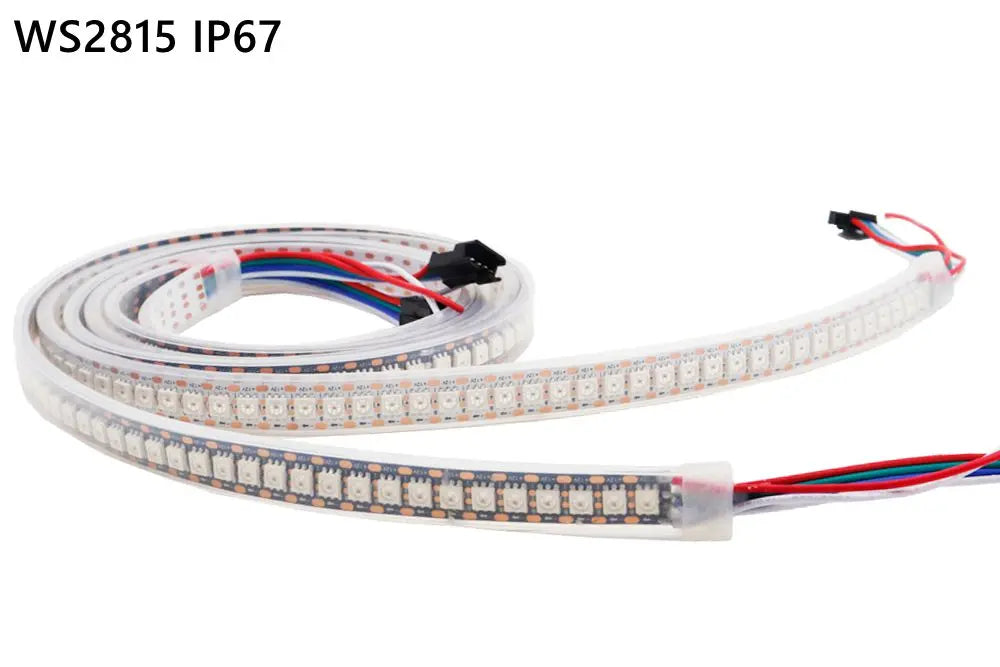

WS2815 LED Strip:

Input voltage:.............DC12V;

Power:.......................144leds/m----34watt/meter

LED resource:...........WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: ...............Each LED is separately controlled

IC Type: ....................Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: ..................(1 IC drives 1 led chip);

Pixels: .........144/meter;

Pitch: ........................16.6mm(1000/64);

Grey scale: ...............256;

Bits/color: .................8-bits/color;

FPC Width: .....................144leds/m----12mm

FPC color: .........White/Black PCB

Protection rate ......IP30/ IP65 /IP67

Colors: .......................Full color RGB, dream color changing;

Cuttable:.....................every LED is cuttable;

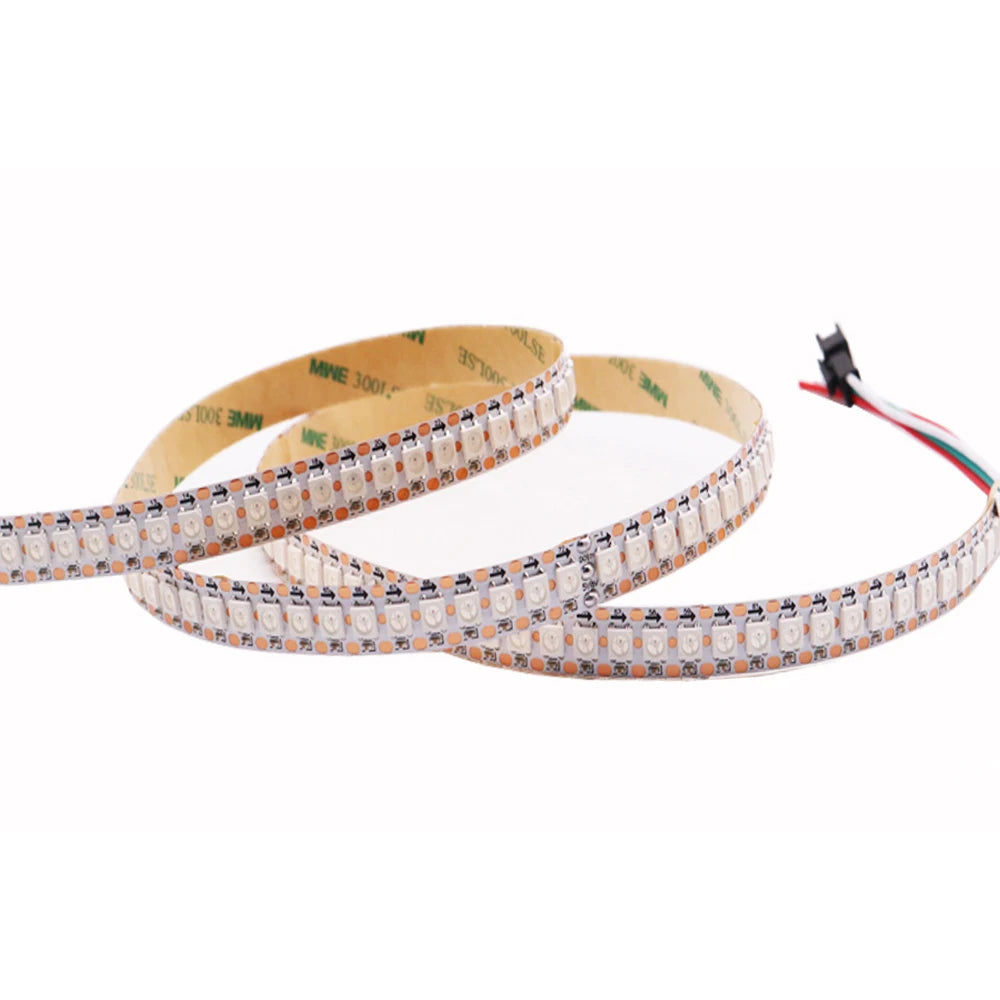

Package: ...................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature...............-40 ~ 70 °C

Storage temperature...............-50 ~ 80 °C

Source life ...............50,000 hours

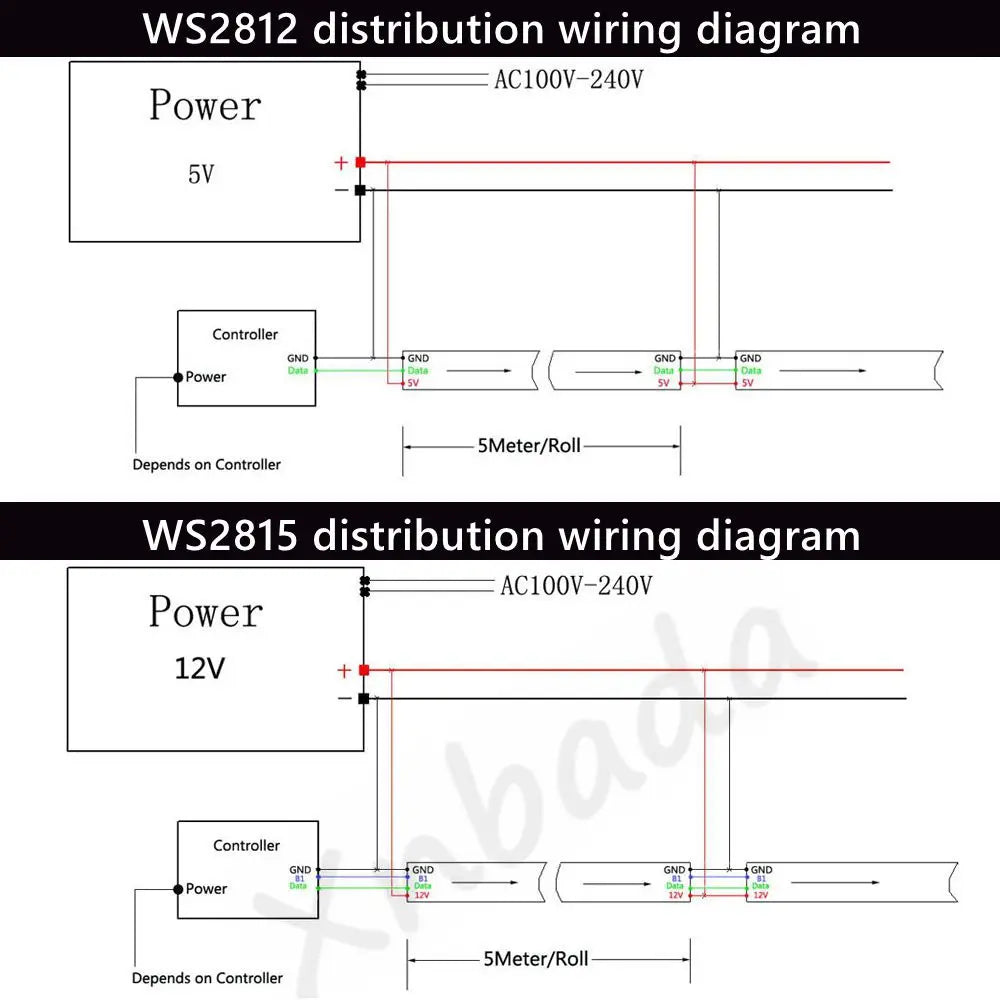

Connector ...............4PIN Connector terminal pair

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)
