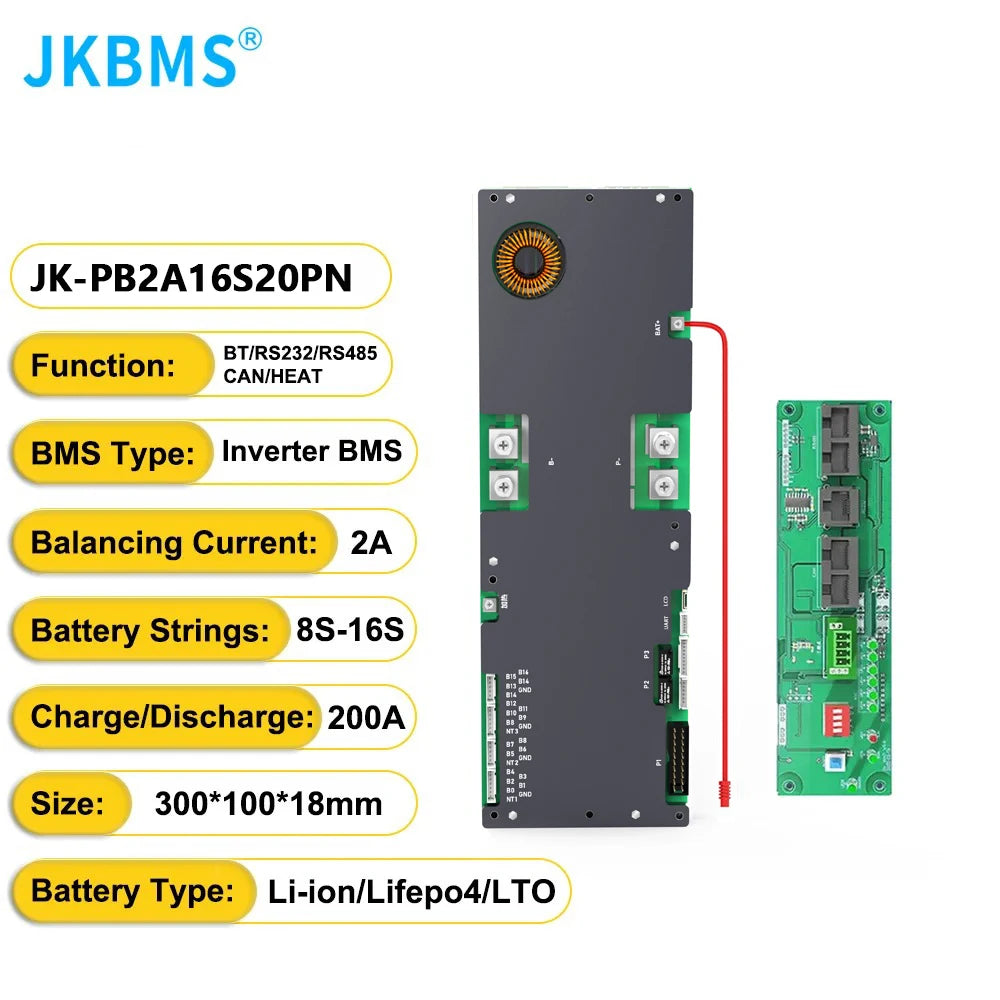

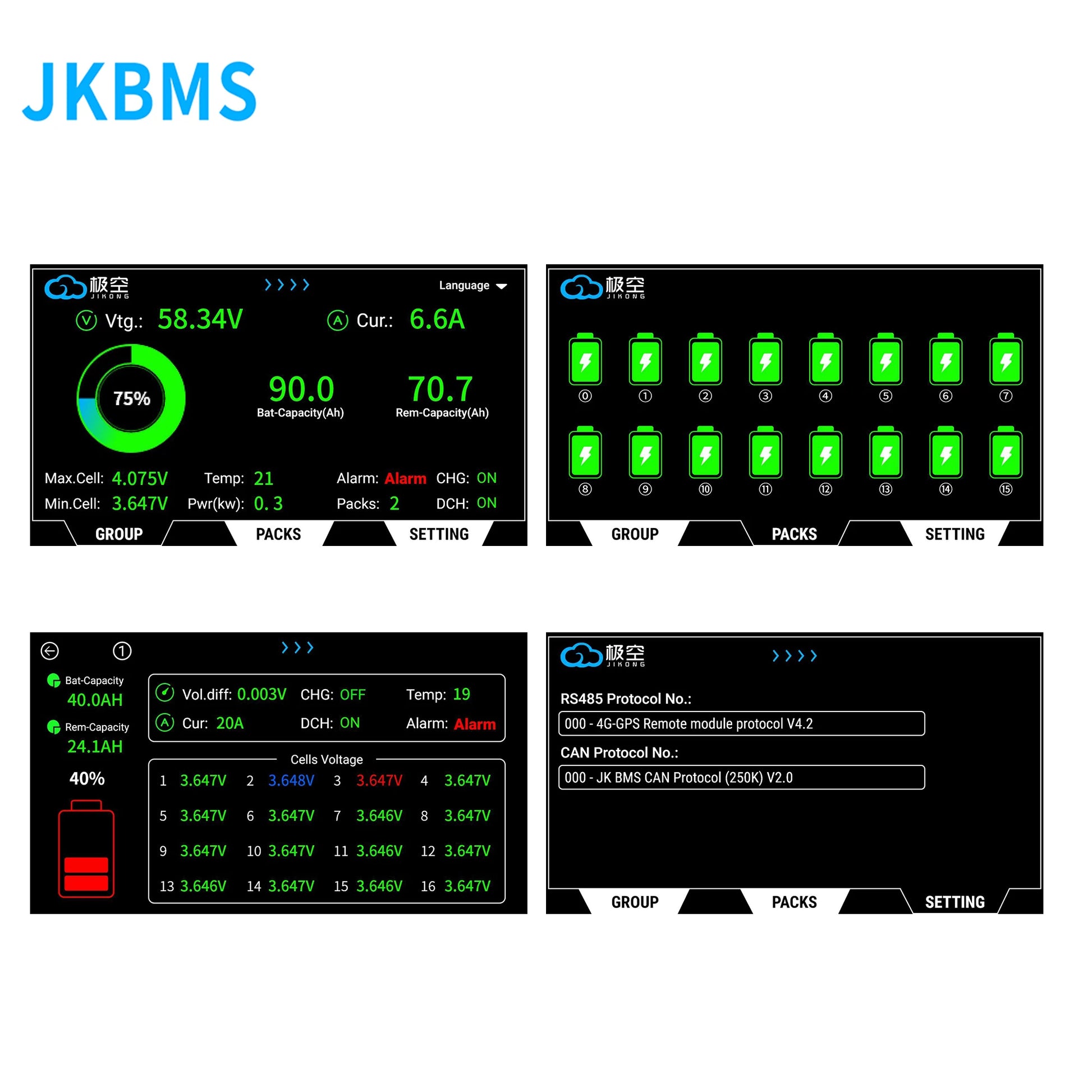

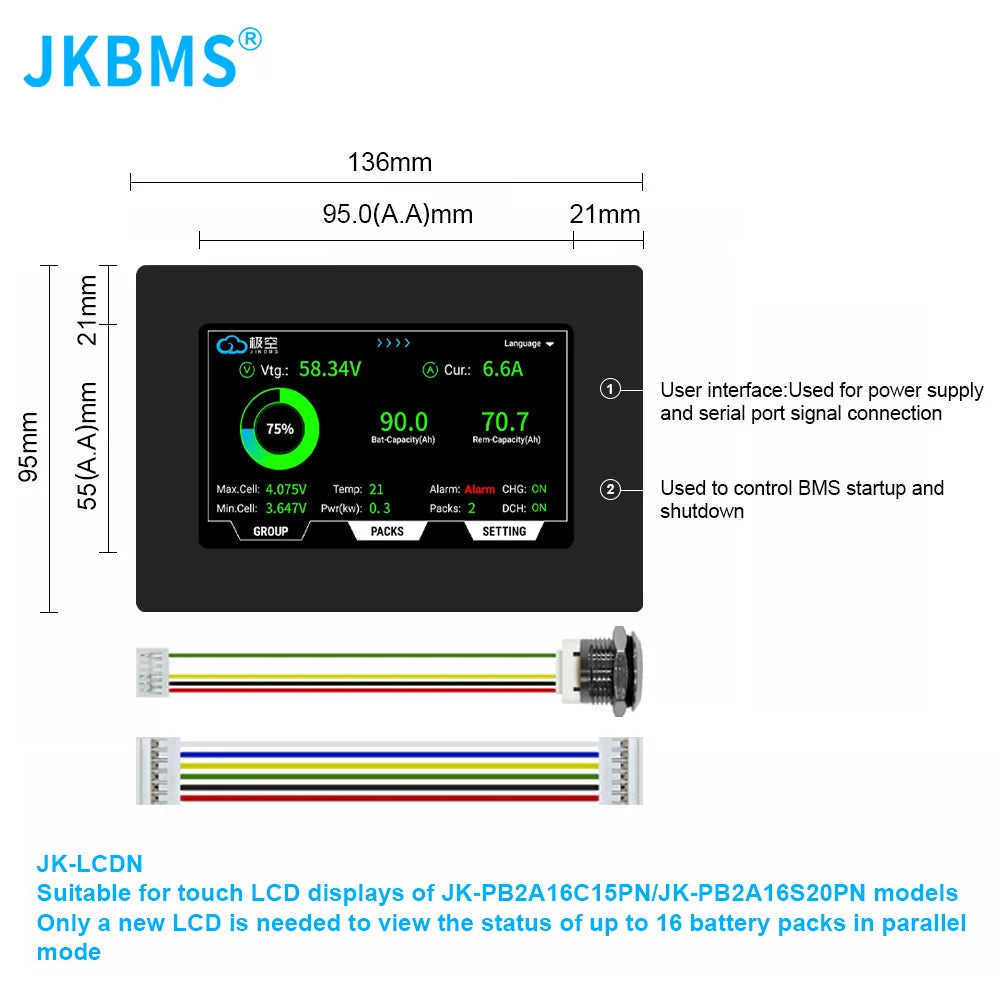

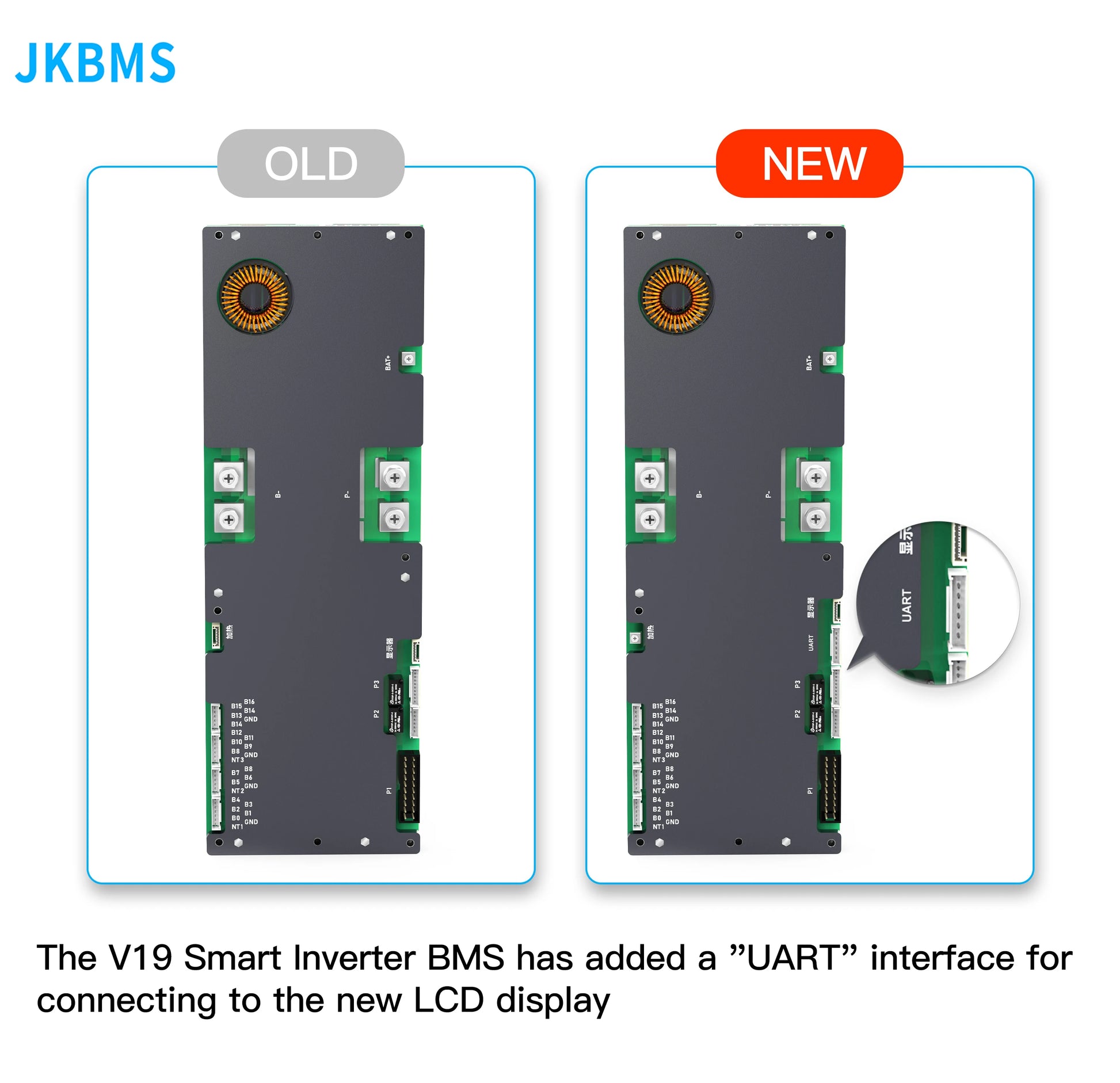

New BMS version with additional UART port for the new display which shows parallel batteries in all details. The port prepares the BMS for future upgrades and new accessories.

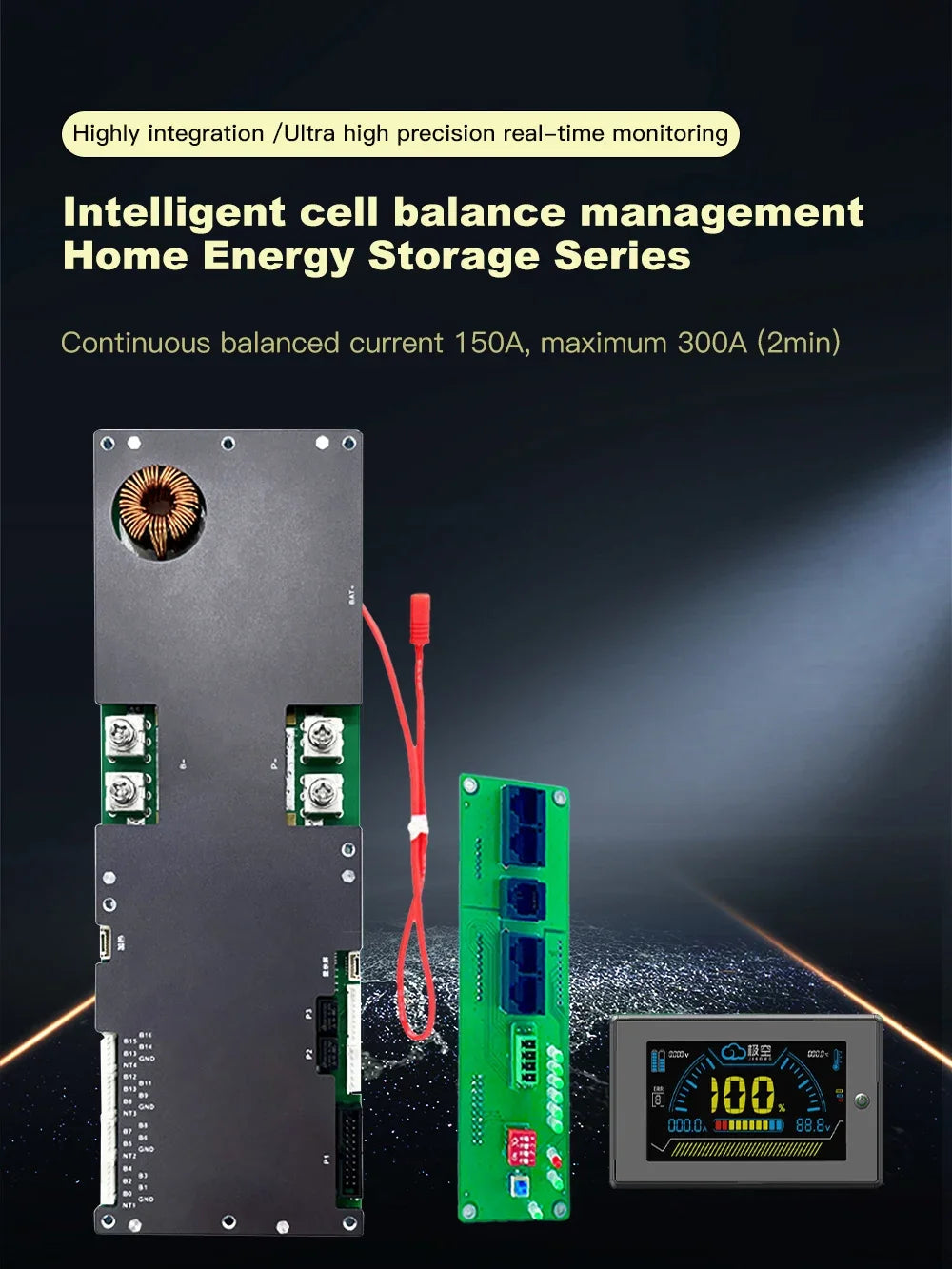

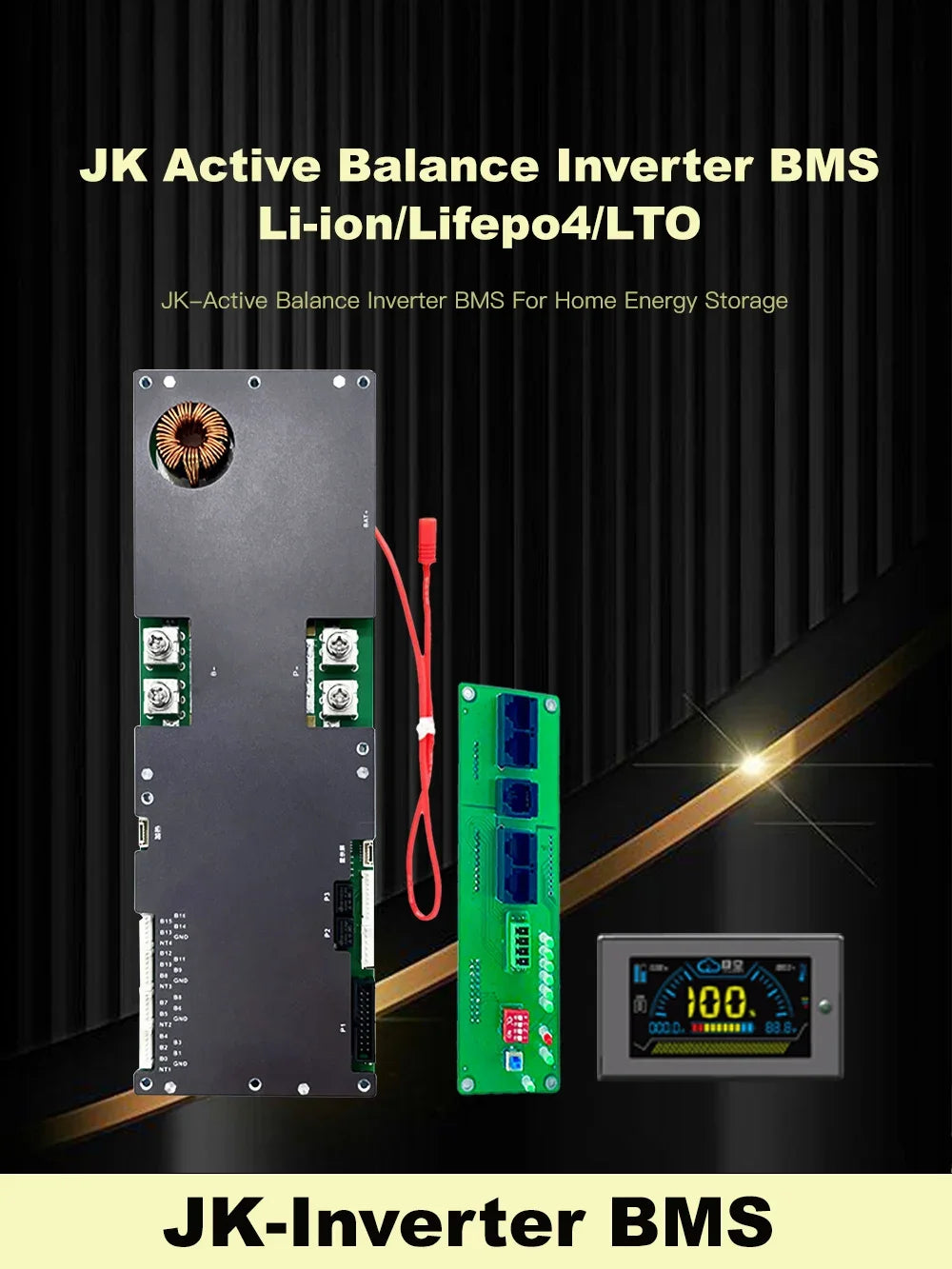

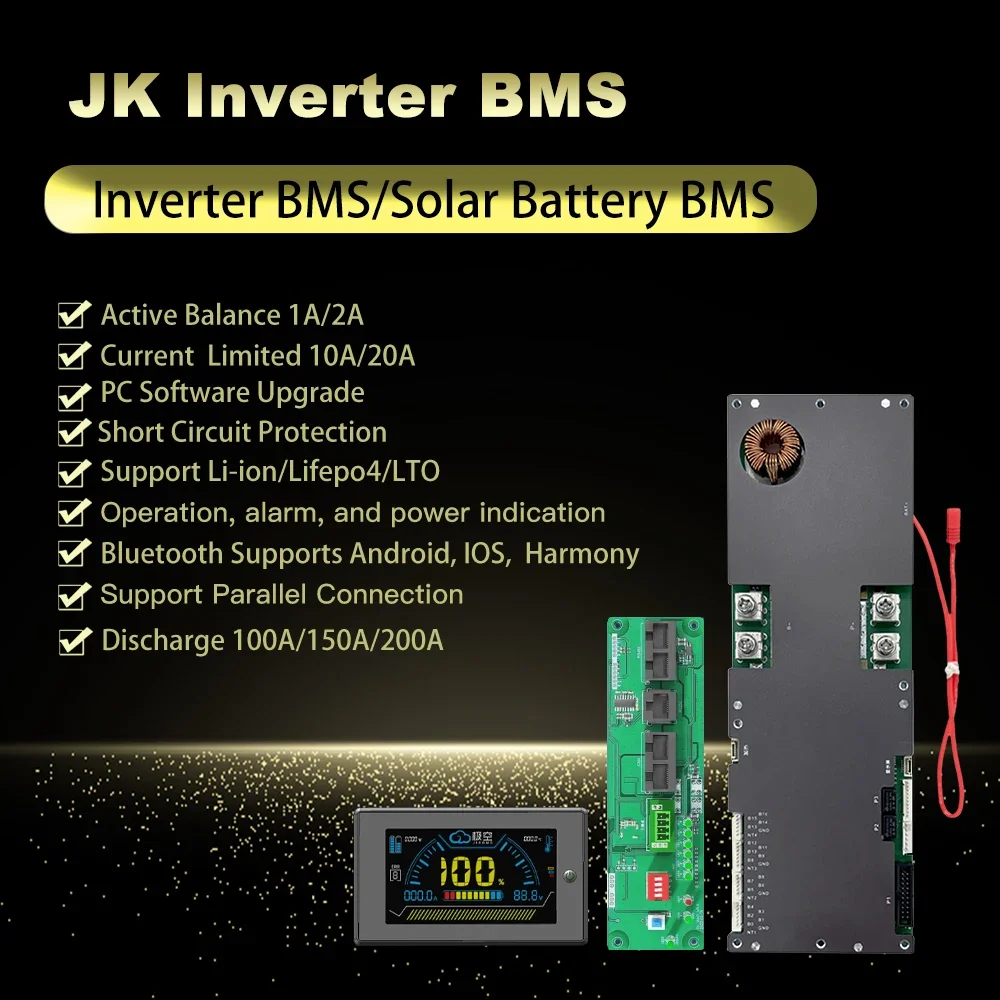

This is the brand new JK-BMS with a lot of new and interesting features. This time, it comes as an inverter BMS, so it can communicate with almost any inverter on the market via CAN or RS485. And, of course, it also has an active balancer onboard, so no need to install one or even worry about cell deviation.

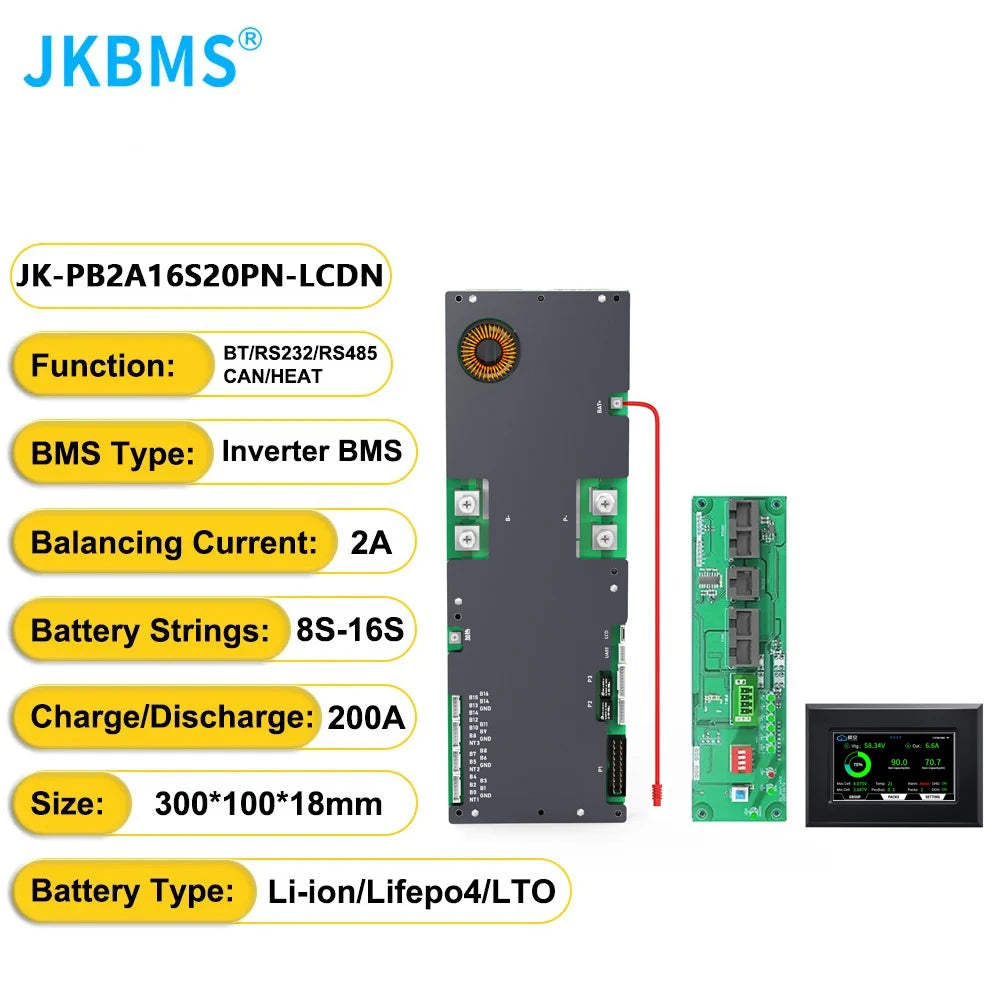

– 8s – 16S for LiFePO4, Li-ion and LTO batteries
– 24V or 48V and 100A-200A
– CAN/RS485 coms to your inverter

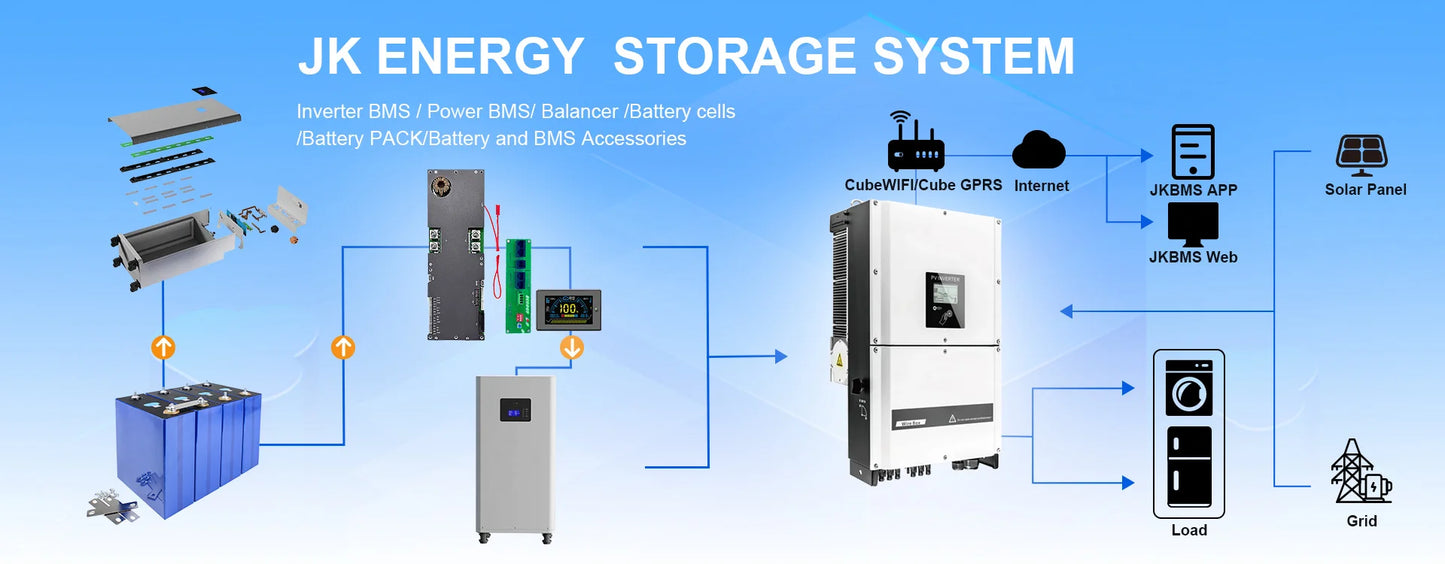

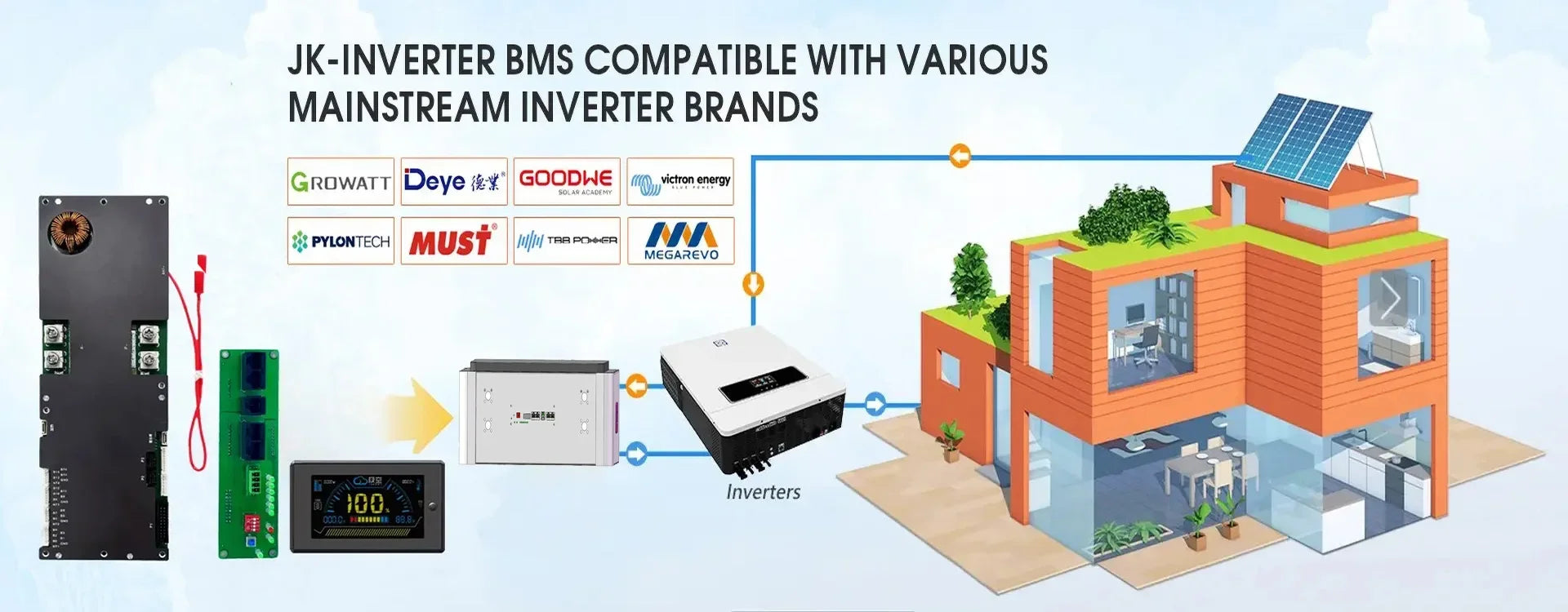

– works with Victron Venus OS and many other inverter brands
– RS232 for PC and RS485 for parallel coms
– strong 2A active balancer included
– Bluetooth function
– colour display
– all alarm and protection parameters
– capacity learning function
– 10A current limiter

BMS can  fully control the charging process through a logic where the user can set the following parameters:
– Absorption voltage
– Absorption timer
– Float voltage
– Float timer
– 0% and 100% voltages
– Alarm buzzer (voltage temperature, current trigger)
– programmable dry contacts (voltage temperature, current trigger, …)

About APP support

Download link-IOS : Search (JKBMS) in the APP STORE
Download link-Andriod : https://play.google.com/store/apps/details?id=com.jktech.bms
Supports upper computer programs, and the computer can update firmware.
The APP supports inverter selection.

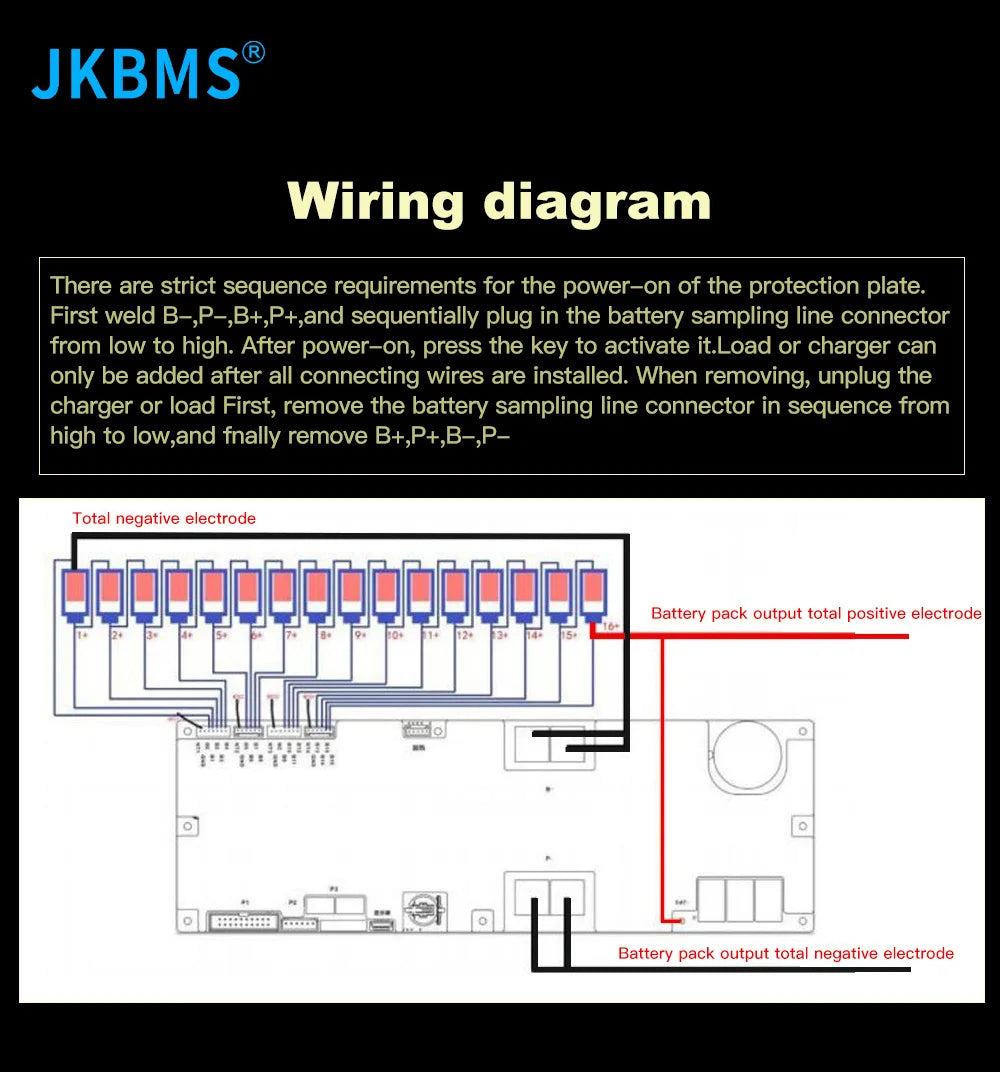

About connection

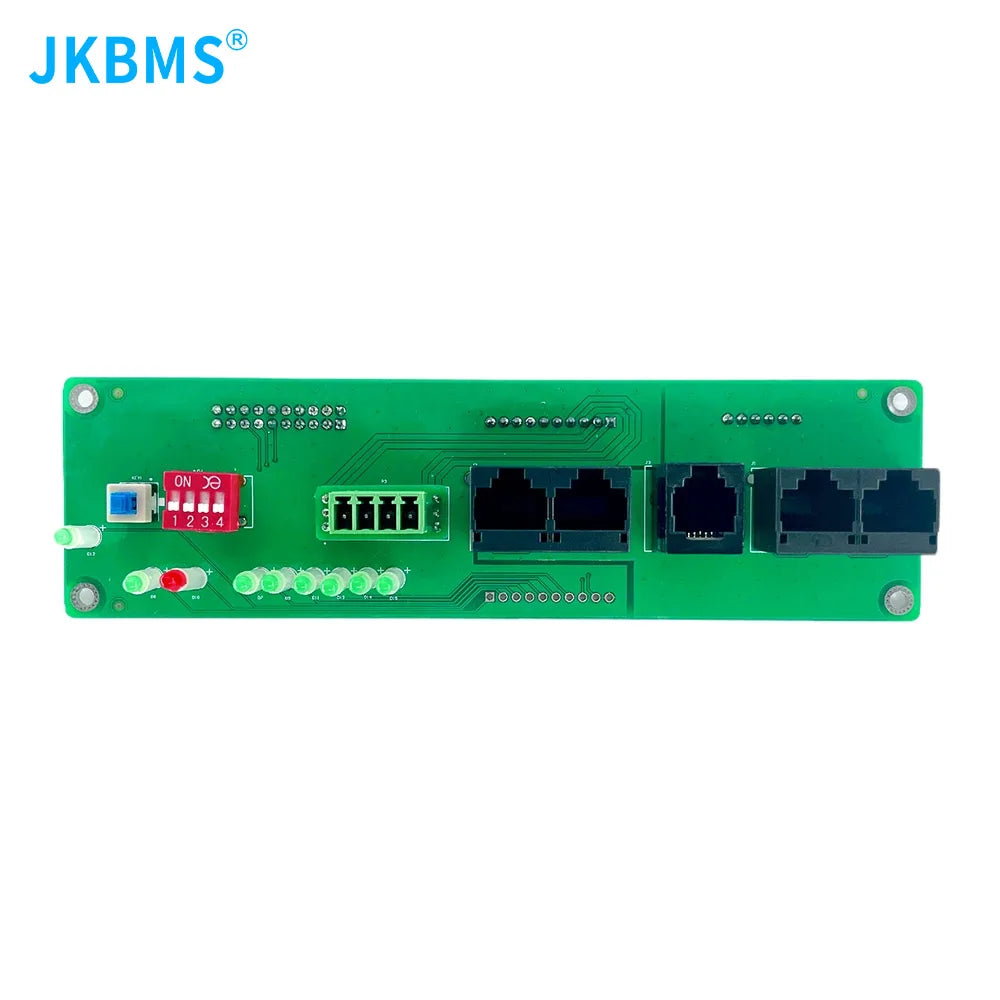

Dear customer, this product supports parallel connection. If you need to use the parallel function, please purchase this product.
This also supports all the functions of the power BMS.

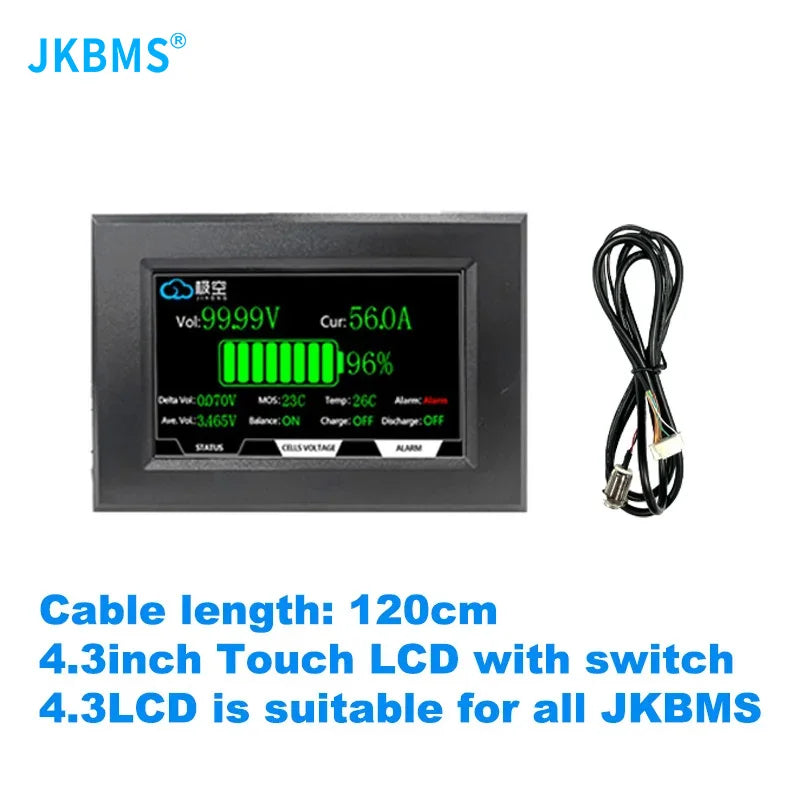

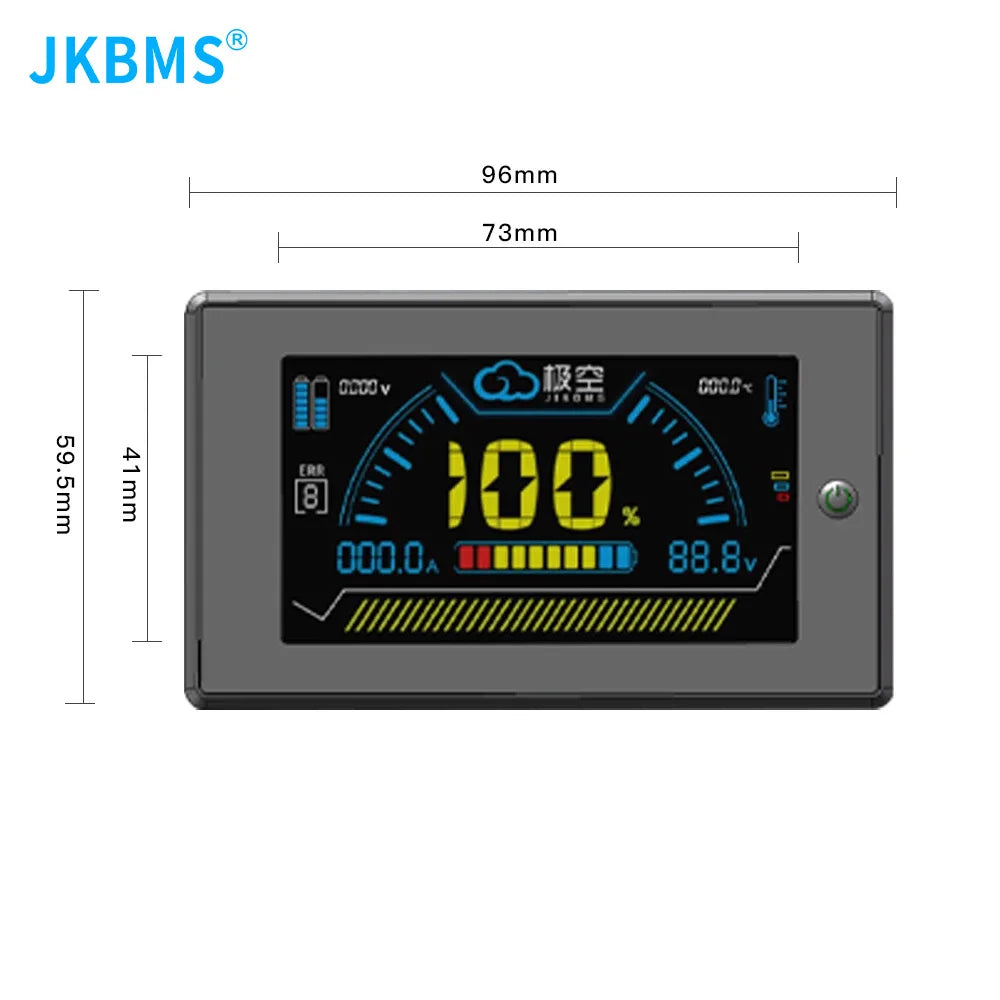

Note: LCD is optional.To purchase an LCD, please purchase a link with an LCD The other accessories are the same.

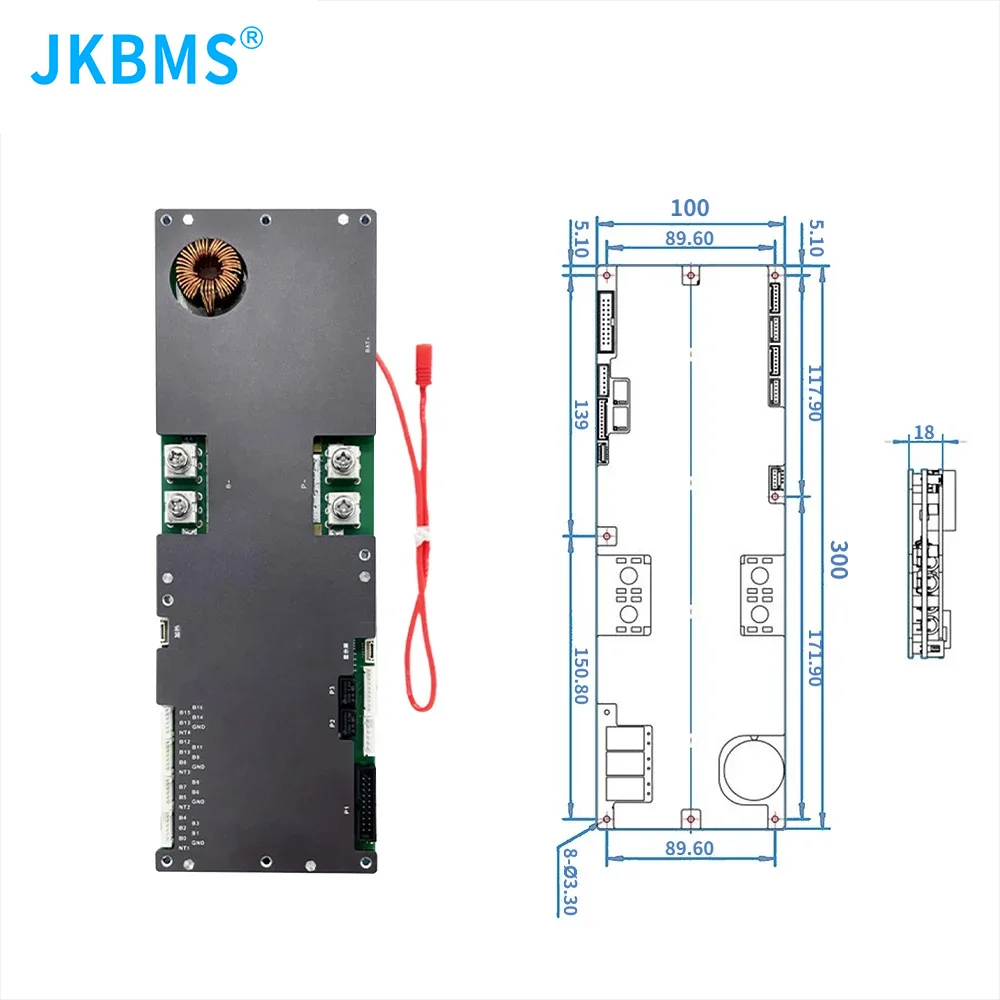

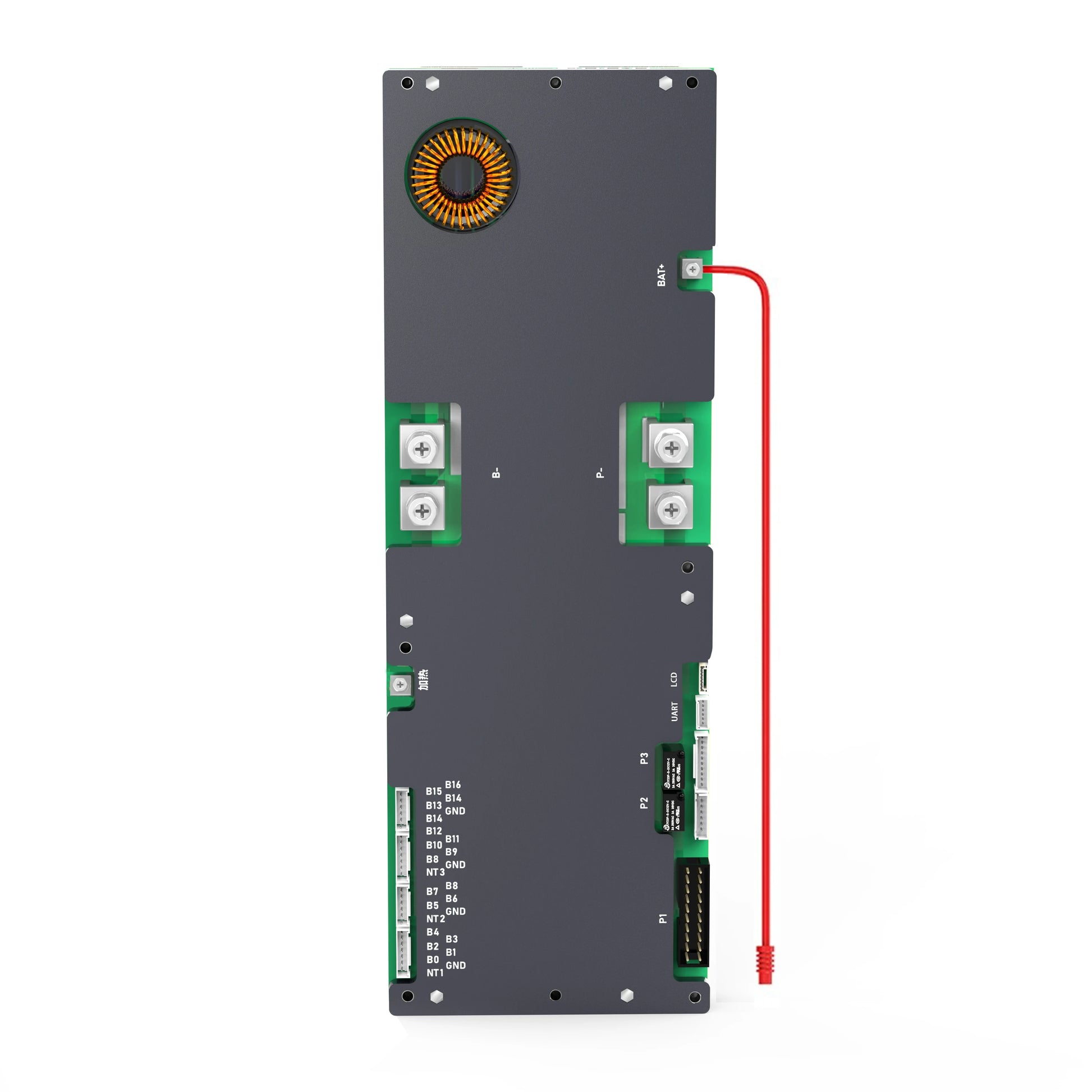

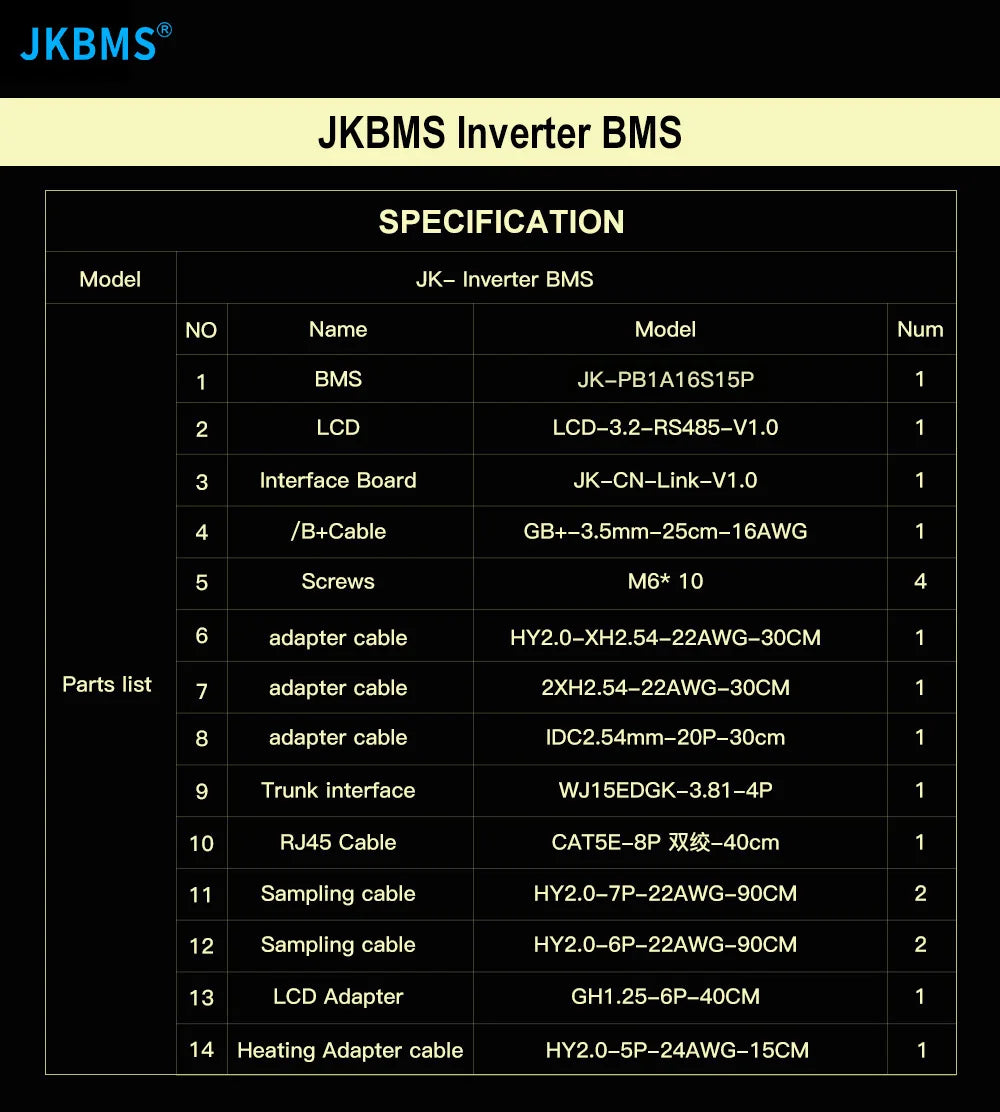

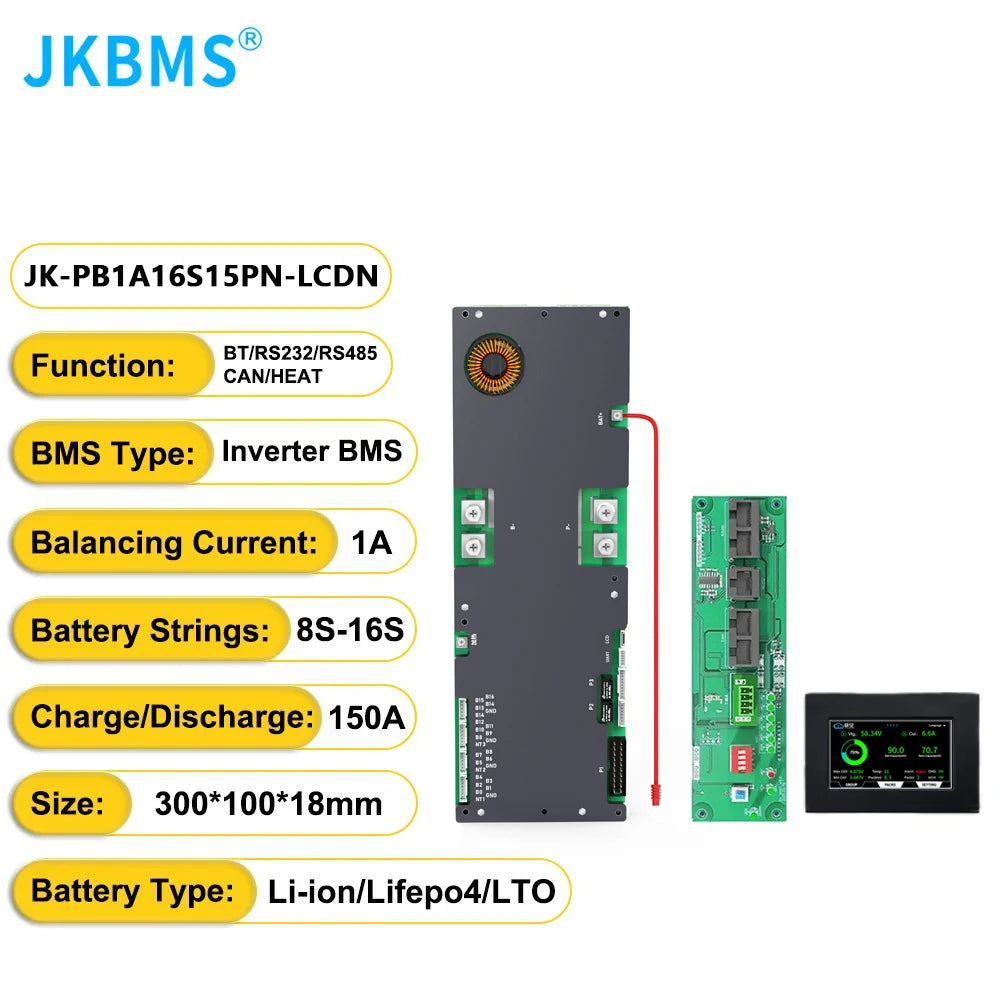

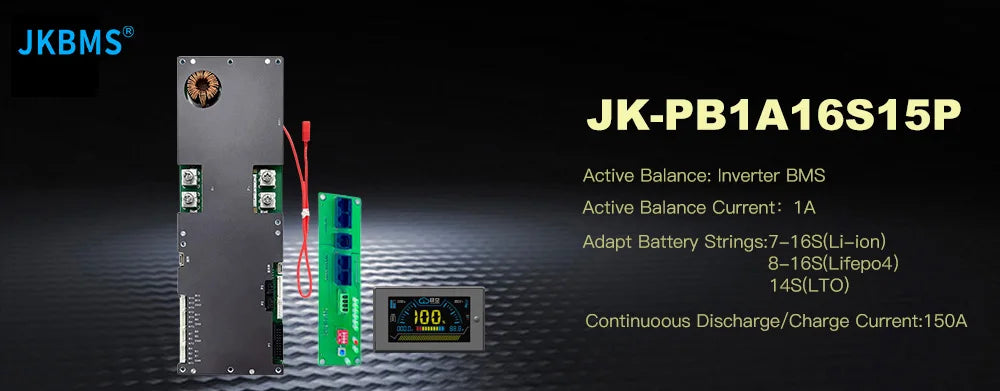

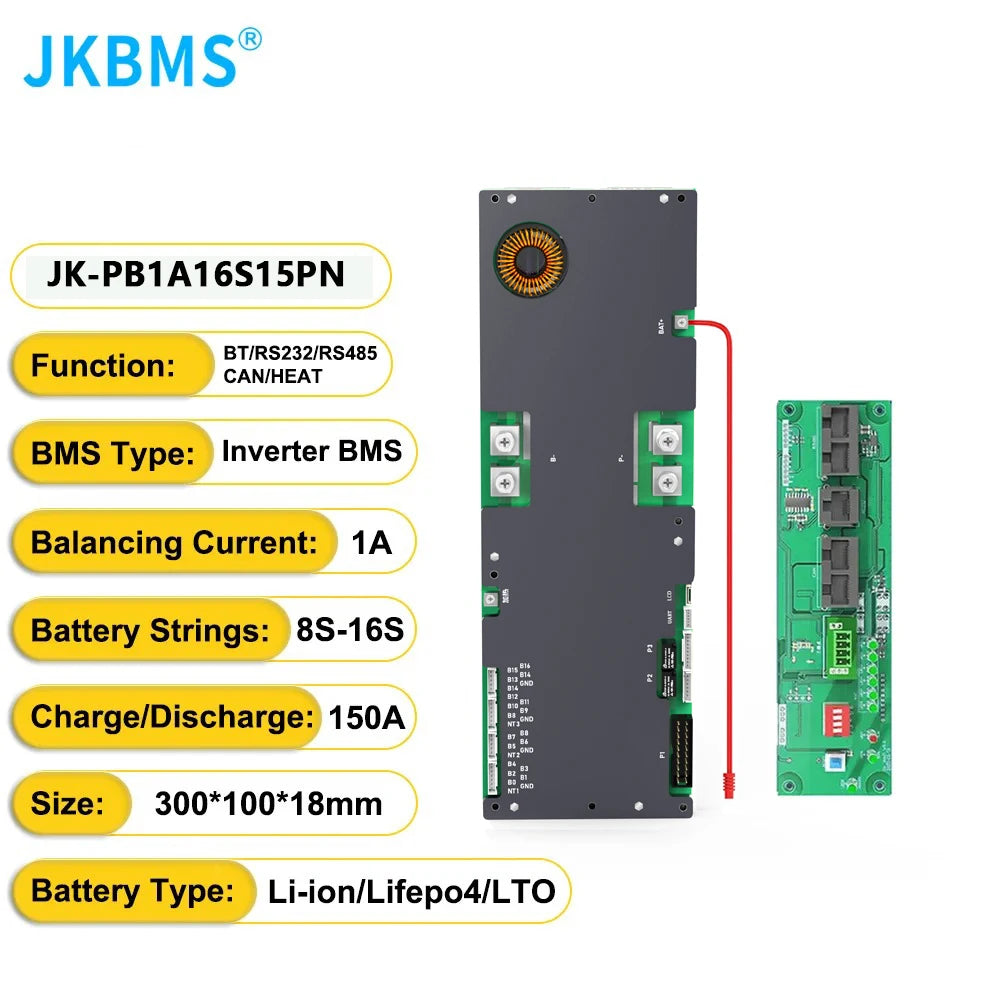

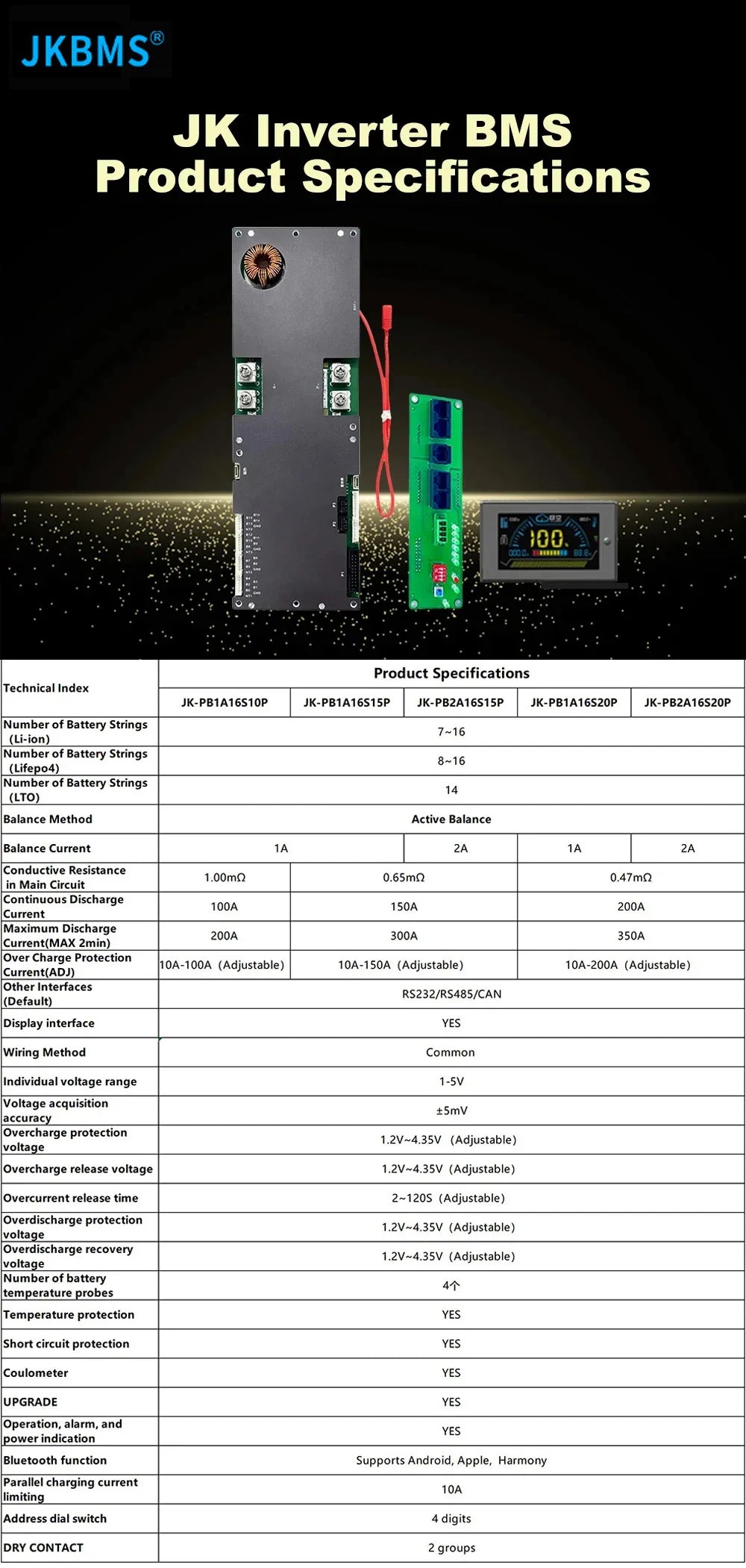

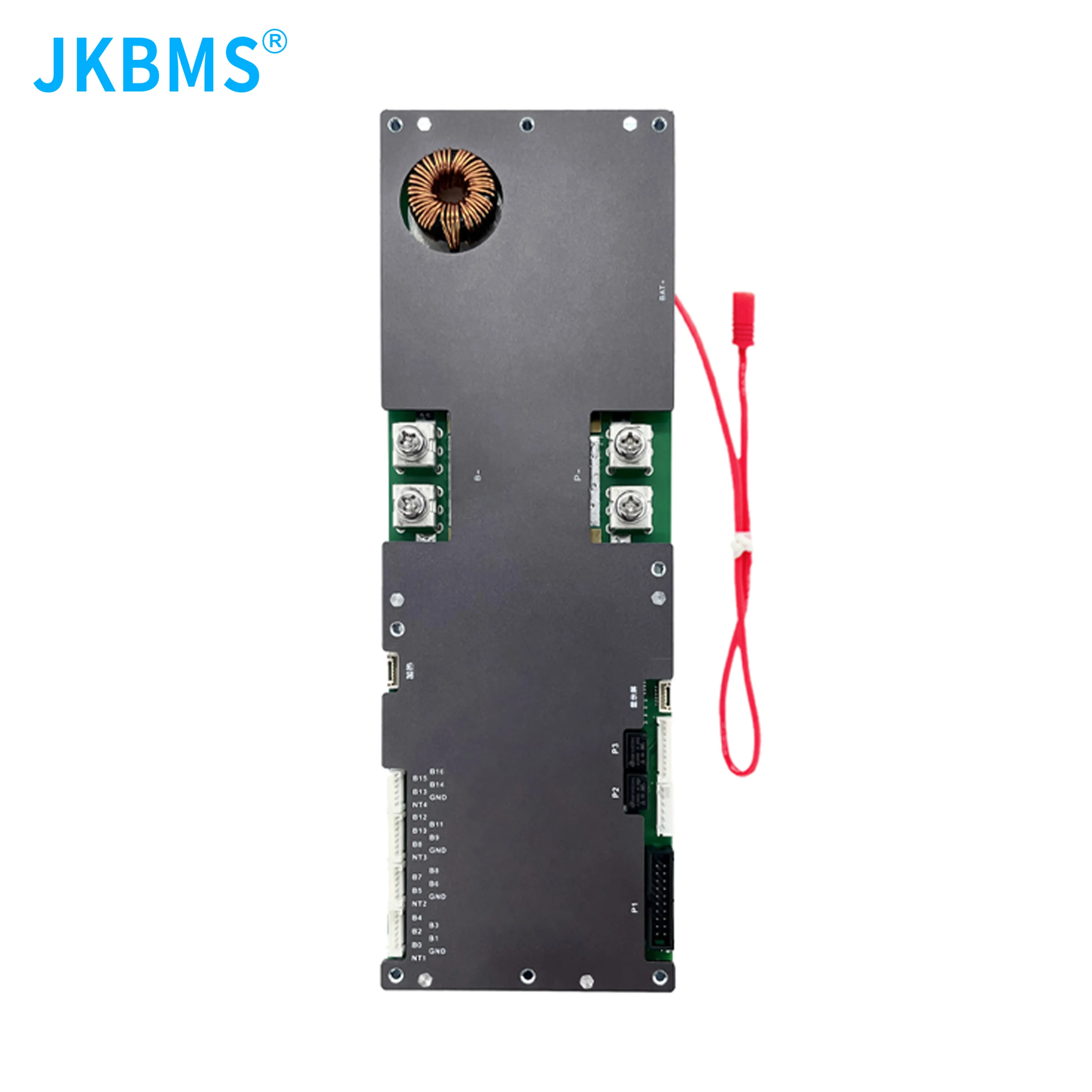

JK-PB1A16S15P

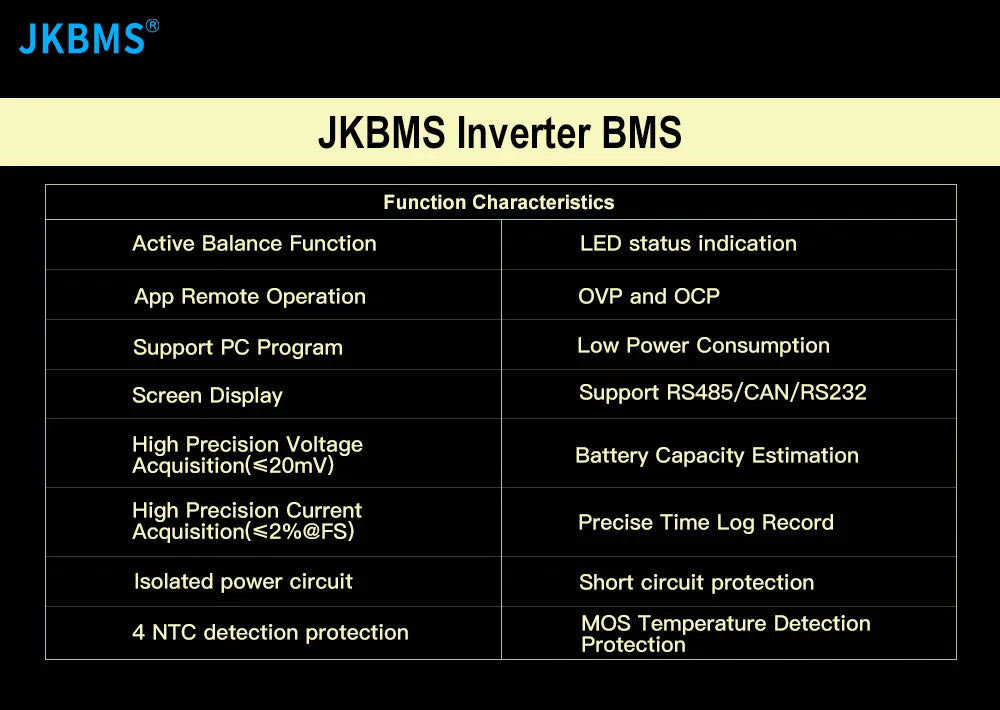

Active Balance: Inverter BMS
Active Balance Current: 1A
Adapt Battery Strings:(Li-ion)7-16S (Lifepo4)8-16S  (LTO)14S
Continuoous Discharge/Charge Current:150A

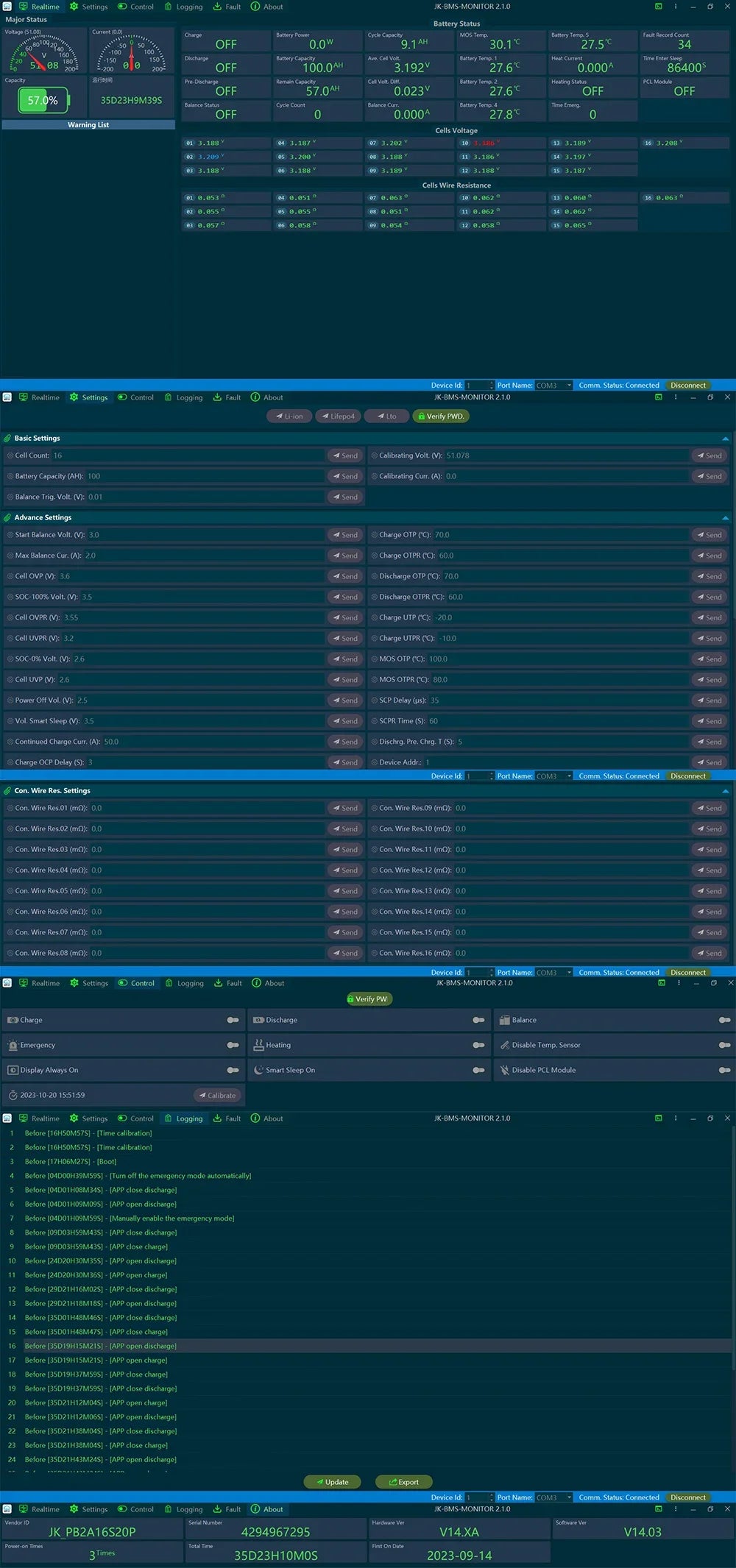

JKBMS Inverter BMS, supporting PC program, comprehensively detecting battery information and condition, making life safer

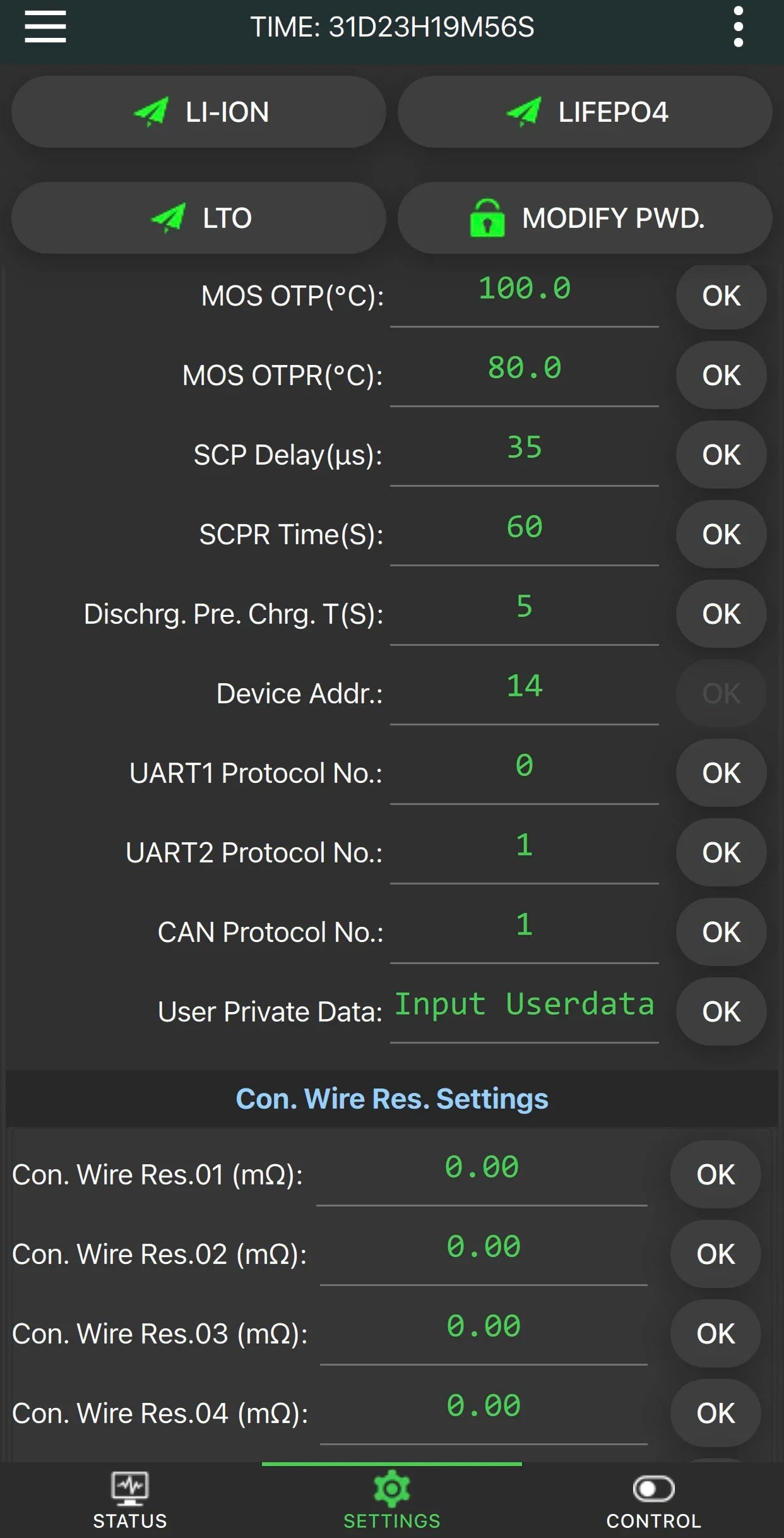

JKBMS Inverter BMS, APP interface

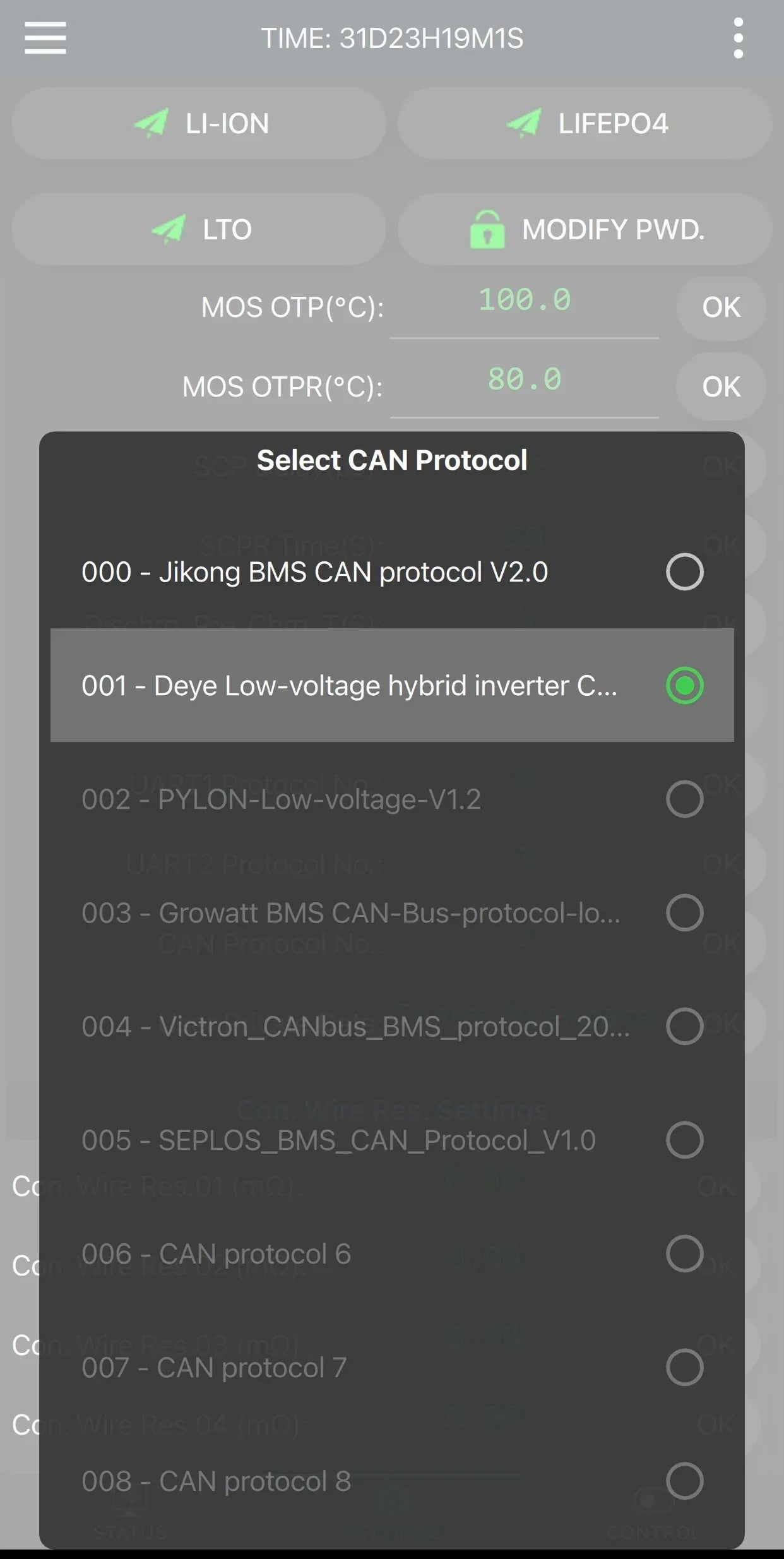

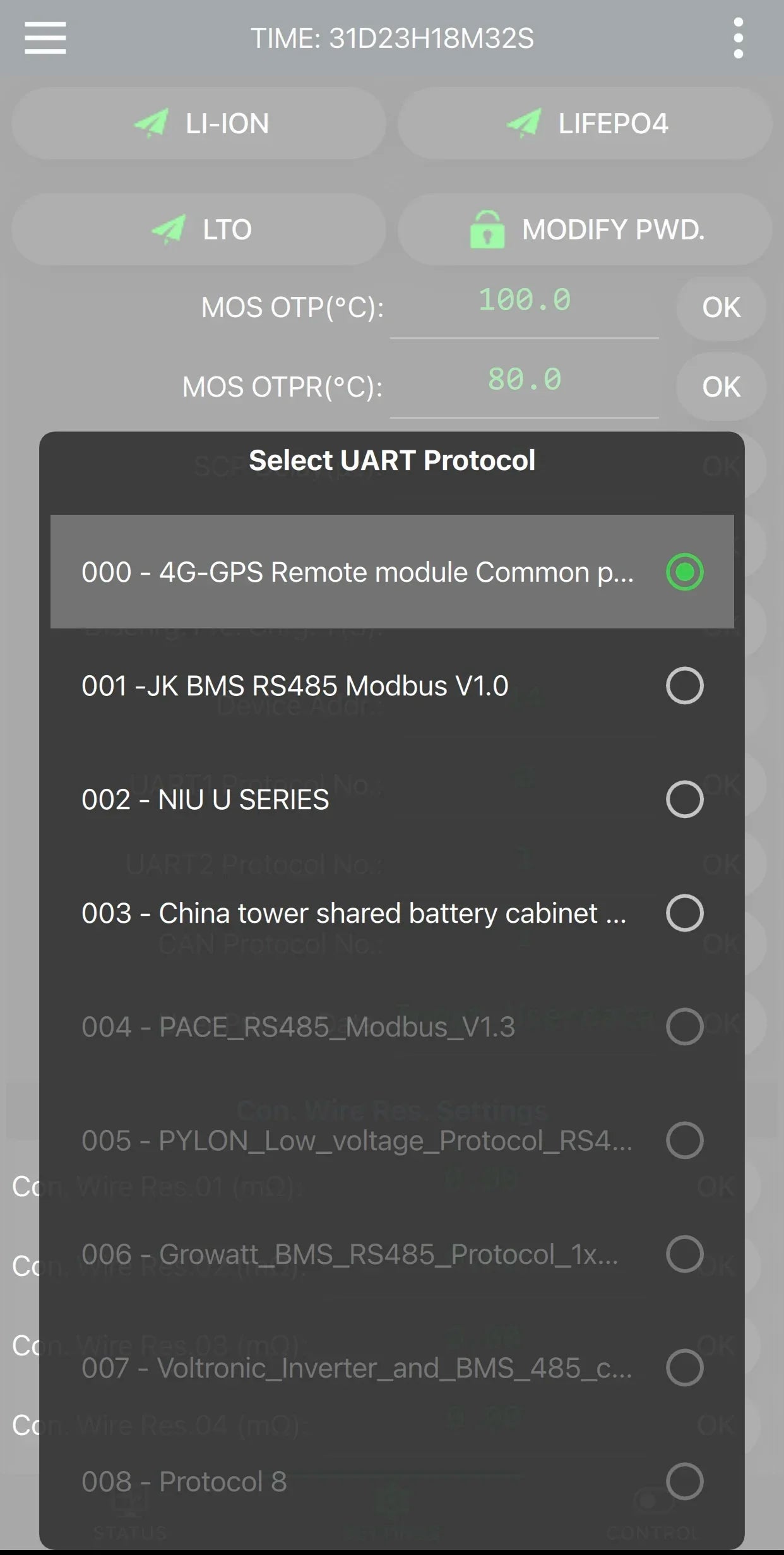

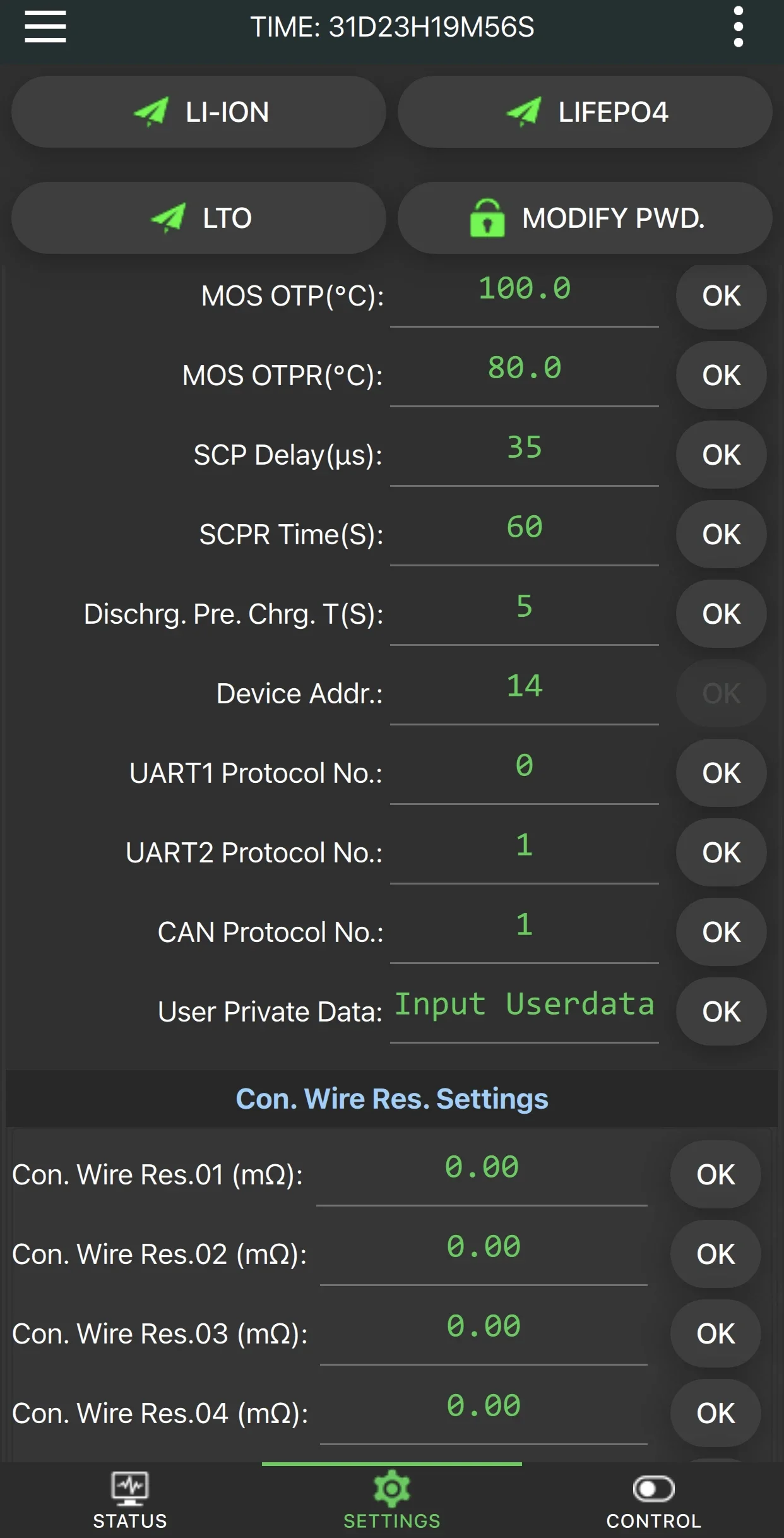

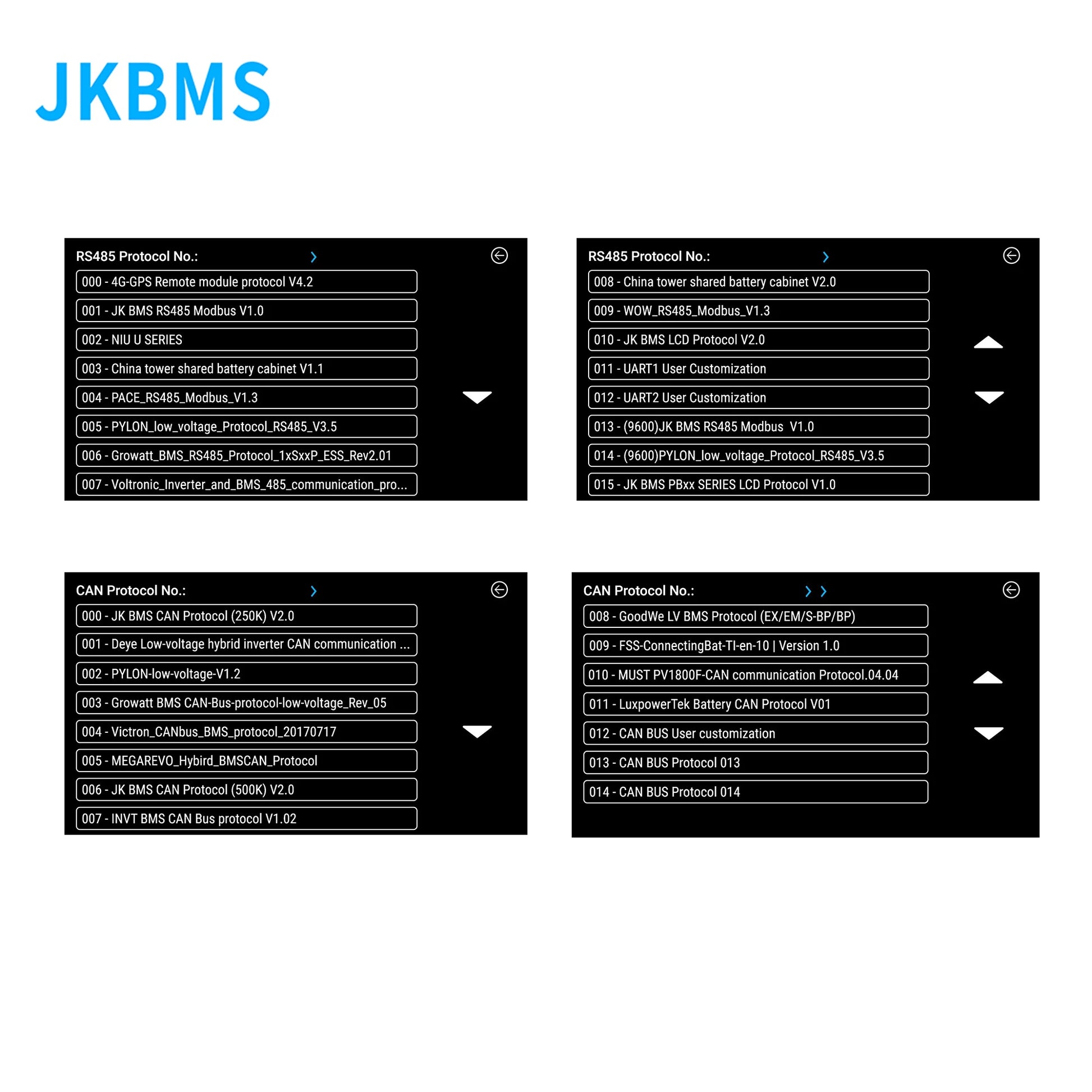

 Click    UART1 Protocol No.  UART2 Protocol No.   CAN  Protocol No.

Settings

.
